G065VN01 V2 Description
The G065VN01 V2 is a 6.5-inch diagonal a-Si TFT-LCD display panel manufactured by AUO, specifically designed for industrial display applications. It features a VGA resolution of 640 × RGB × 480, delivering sharp and stable image performance.
The panel supports 16.2 million colors (RGB 6-bit + FRC) or 262K colors (RGB 6-bit), ensuring accurate color reproduction for industrial visualization needs.
G065VN01 V2 Structure and Design
Structurally, the G065VN01 V2 integrates a TFT-LCD panel, driver ICs, control and power supply circuits, and an LED backlight unit with a built-in LED driving circuit. It uses an LVDS interface for display signal input, providing reliable high-speed data transmission and strong anti-interference capability. This greatly simplifies system design, as developers do not need to add an external inverter or high-voltage board.
The G065VN01 V2 features a robust metal rear frame combined with a compact housing, with an overall thickness of approximately 7 mm. This design enhances resistance to vibration and mechanical shock, while also delivering excellent heat dissipation and electromagnetic shielding performance.
G065VN01 V2 Specifications
This section provides a detailed overview of the main specifications of the G065VN01 V2, including display size, resolution, color performance, electrical characteristics, and interface type, helping users gain a comprehensive understanding of the display’s performance features.
TYPE | DESCRIPTION |
Brand | AUO |
Model | |
Size | 6.5" |
Composition | LCM |
Resolution | 640(RGB)×480, VGA 122PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 132.48(W)×99.36(H) mm |
Bezel Opening | 135.9(W)×102.8(H) mm |
Outline Size | 153×118×11.2 (H×V×D) |
Brightness | 800 cd/m² (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (TM) |
Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
Response Time | 15/10 (Typ.)(Tr/Td) ms |
Good View at | 6 o'clock |
Color Depth | 262K/16.2M 55% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Voltage Supply | 3.3V (Typ.) |
Panel Weight | 170g (Typ.) |
Signal Interface | LVDS (1 ch, 6/8-bit) , Connector 20 pins |
Touchscreen | Without |
Max Ratings | Operating Temperature:-30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |

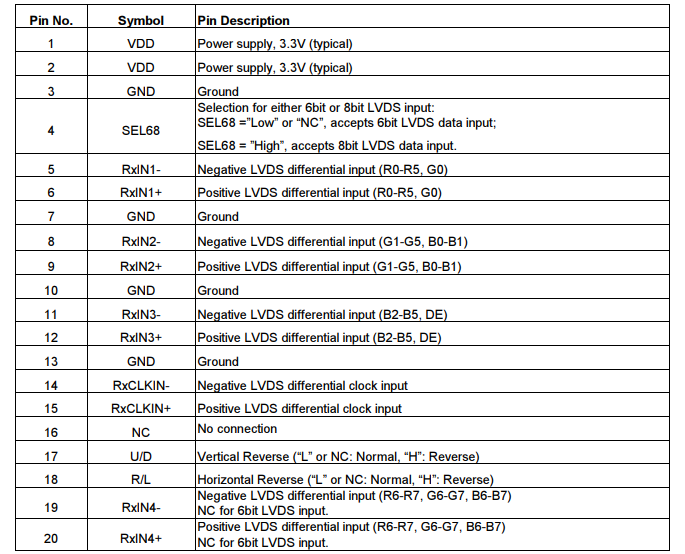

G065VN01 V2 Signal Description
G065VN01 V2 TFT-LCD module includes an LVDS receiver. LVDS is a differential signal technology for high-speed data transfer in LCD interfaces. LVDS Transmitter shall be THC63LVDM83A (THINE) or equivalent.
The G065VN01 V2 LCD display has a flexible signal interface design. Its key feature is support for 6-bit or 8-bit LVDS input switching. By controlling the level of Pin 4 (SEL68), developers can easily select the data mode. When the pin is low or floating, the panel works in 6-bit mode. When the pin is high, it supports 8-bit input for richer color display.
In addition, the panel includes a useful image flip function. Using Pin 17 (U/D) and Pin 18 (R/L), you can control vertical or horizontal image mirroring directly at the hardware level. This makes it easy to install the display in inverted or rear-mounted positions, without complex image rotation in the software driver.
G065VN01 V2 Display Advantages
Now we will focus on the advantages of the G065VN01 V2 display in different aspects. These features help users better understand the real value the G065VN01 V2 brings to industrial applications.
l Integrated WLED Backlight System: Built-in LED driver.
l Wide Temperature Operation: Operating temperature -30℃ to 80℃, storage temperature -30℃ to 80℃.
l High Vibration Resistance: Maximum vibration level 1.5G (14.7 m/s²), suitable for industrial environments.
l Replaceable Backlight: Easy maintenance, extends service life.
l Long-Life Backlight: WLED backlight lifespan ≥ 50,000 hours.
l Image Flip Function: Supports hardware-level up/down (U/D) and left/right (L/R) mirror flipping.
l Flexible Color Input: Supports 6-bit or 8-bit LVDS data input.
l Glossy Screen: Brighter and more vivid color display.
l EcoTR Energy-Saving Feature: Reduces power consumption, environmentally friendly.
G065VN01 V2 LCD for Industrial Use
The G065VN01 V2 is a classic 6.5’’ industrial display module. With its highly reliable structure and flexible signal configuration, it plays an important role in various parts of industrial production.
Here are some of its industrial applications:
Industrial Automation HMI
With LVDS high-speed transmission and strong anti-interference capability, it is often used in factory control cabinets and automation production lines. It shows real-time device status, operating parameters, and complex ladder diagram interfaces.
CNC Machine Control Panels
Its 640 × 480 resolution fits traditional CNC system interfaces well. The sturdy metal frame resists strong vibration and mechanical shock during machining.
Handheld Industrial Test Instruments
Thanks to its thin design (~7mm) and built-in LED driver, it is widely used in portable oscilloscopes, infrared thermal imagers, and cable testers, helping reduce device size and simplify power circuit design.
Industrial Monitoring and Machine Vision Terminals
With 8-bit color display, it can be used in industrial camera monitoring terminals to clearly show material inspection details. It also supports hardware-level image flip, adapting to different mounting positions.
Embedded Systems
The G065VN01 V2 is suitable for industrial computers, testing instruments, and smart meters. It provides a highly reliable display solution for embedded systems. It is easy to integrate into tight spaces while ensuring stable operation in industrial environments.
What to Consider?
1. Handle the display area carefully; avoid scratches or damage to the polarizer/glass.
2. Power off before connecting or disconnecting signal cables.
3. Wipe off water immediately to prevent discoloration or spots.
4. Clean surface with soft cloth or absorbent cotton if soiled.
5. Avoid bumping or dropping the module; glass may break.
6. Prevent ESD: ground yourself before handling.
7. Do not open or modify the module assembly.
8. Do not press the reflector sheet at the back.
9. When returning module to packaging, press softly at reflector edges, not center.
10. Insert/remove cables without force, rotation, or tilt.
11. Do not twist or bend the module; avoid external force from end users.
12. Use power compliant with Limited Power Source standards (IEC60950/UL1950).
13. Extreme temperatures may affect luminance and response time.
14. High-temperature operation may reduce LED brightness over time.
15. Specs apply when module is in landscape orientation.
16. Continuous display of fixed patterns may cause image sticking; use screen savers or moving content periodically.
FAQs
What is the G065VN01 V2?
It is a 6.5'' a-Si TFT-LCD display module from AUO, designed for industrial applications.
What is the resolution and color support?
It has a VGA resolution (640 × RGB × 480) and supports 16.2M colors (6-bit + FRC) or 262K colors (6-bit).
How is the backlight designed?
It features a WLED backlight with built-in LED driver, and the backlight is replaceable with a lifespan of ≥50,000 hours.
Is the module suitable for harsh industrial environments?
Yes, it is vibration-resistant (up to 1.5G), has a robust metal frame, and a thin 7mm compact design for easy integration.
