G104AGE-L02 Overview
The G104AGE-L02 is a 10.4-inch a-Si TFT-LCD display module developed by Innolux. It is positioned for mature and stable small- to mid-size display applications and is widely used in industrial and embedded markets as a common option for system upgrades and replacements.
In terms of structure and specifications, the G104AGE-L02 features a white LED backlight with a built-in backlight driver, which simplifies system power and control design. The module supports an 800 × 600 (SVGA) resolution and displays 262K or 16.2M colors, enabling clear presentation of graphical interfaces, data, and basic images.
For the interface, the G104AGE-L02 uses a 20-pin single-channel LVDS interface. It offers strong compatibility and easy integration with mainstream industrial motherboards and embedded control systems.
G104AGE-L02 Specifications
Below is a table of common specifications for the G104AGE-L02 LCD screen, for reference.
TYPE | DESCRIPTION |
Brand | |
Model | |
Size | |
Composition | LCM |
Resolution | 800(RGB)×600, SVGA 96PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 211.2(W)×158.4(H) mm |
Bezel Opening | 214.8(W)×162.7(H) mm |
Outline Size | 243(H)×184(V) mm |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 700:1 (Typ.) (TM) |
Viewing Angle | 80/80/70/70 (Typ.)(CR≥10) |
Response Time | 5/11 (Typ.)(Tr/Td) |
Display Colors | 262K/16.2M 53% NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Voltage Supply | 3.3V (Typ.) |
Panel Weight | 505/540g (Typ./Max.) |
Signal Interface | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Touchscreen | Without |
Max Ratings | Operating Temperature:-30 ~ 85 °C ; Storage Temperature: -30 ~ 85 °C |
G104AGE-L02 Display Features
This section mainly introduces the display performance and structural design of this LCD module. It delivers clear images and stable colors while remaining practical and easy to use, meeting everyday requirements for high-quality display performance.
- 10.4-inch standard size
- a-Si TFT-LCD technology
- Wide viewing angle of 176°/176°
- SVGA (800 × 600 pixels) resolution
- Standard 1-channel LVDS interface with broad compatibility
- Supports 262K / 16.2M colors
- White LED backlight with uniform brightness
- Built-in backlight driver
- 20-pin connector design for easy system integration
- Supports 8-bit color depth
- Backlight lifetime up to 50,000 hours
- Suitable for industrial and embedded devices
- Wide operating temperature range
- DE (Data Enable) mode supported
- Reversible scan direction
- RoHS compliant

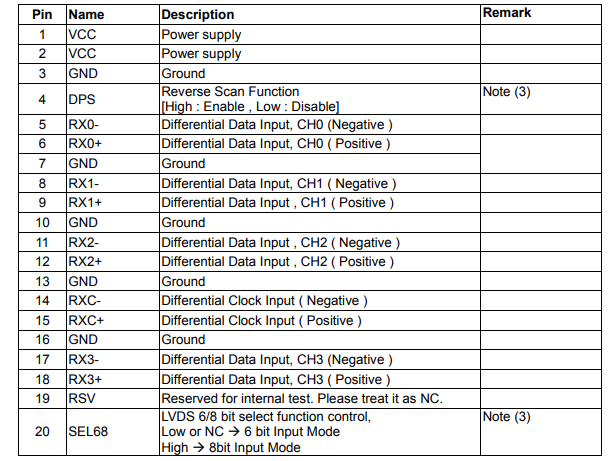

G104AGE-L02 Input Terminal Pin Assignments
The G104AGE-L02 LCD uses a 20-pin connector for power input, LVDS data transmission, and function control. VCC (Pin 1 and Pin 2) is used for power supply input, while multiple GND pins provide a stable ground reference.
For signal transmission, the module uses a standard 1-channel LVDS interface. RX0±, RX1±, RX2±, and RX3± correspond to differential data inputs for channels CH0 to CH3. RXC± is the differential clock input used to synchronize data transmission.
Some pins are reserved for function control. The DPS pin controls the reverse scan function, with high level enabled and low level disabled. The SEL68 pin selects the LVDS input mode, where high level sets 8-bit mode and low level sets 6-bit mode. The RSV pin is reserved for internal testing and should be left unconnected (NC).
Where to Use G104AGE-L02 LCD?
The G104AGE-L02 LCD has a wide range of applications, particularly in industrial and professional settings. In addition, it meets the requirements of automated production, embedded systems, transportation terminals, medical instruments, and entertainment devices, providing advanced display solutions for a variety of equipment.
Industrial Equipment Display Panels
The G104AGE-L02 screen is widely used in industrial control panels and instrumentation. It can reliably display critical operational data such as current, voltage, temperature, and pressure even in high-temperature, dusty, or vibration-prone environments, helping operators monitor equipment in real time and improving industrial safety and efficiency.
Factory Automation and Production Line Monitoring
In automated production lines, the G104AGE-L02 serves as a monitoring terminal to display production data, equipment status, and alarm information. It allows seamless integration with PLCs and other industrial control systems, helping optimize workflows, reduce human errors, and enhance overall production efficiency.
TFT LCD Embedded Display Systems
The G104AGE-L02 can be used as an embedded display module in industrial PCs, research instruments, and testing equipment. With high resolution and accurate color reproduction, it is suitable for dynamic data visualization and human-machine interface (HMI) applications. Its modular design also simplifies replacement and maintenance, reducing long-term operational costs.
Entertainment and Gaming Devices
The G104AGE-L02 provides stable and clear displays for arcade machines, simulators, and other entertainment devices. It features smooth visuals and vivid colors, maintaining performance even during extended use and enhancing user interaction experiences.
Transportation and Smart Terminal Displays
This LCD can be used in vehicle displays, public transportation terminals, and navigation devices. It can ensure clear display of vehicle information, routes, and announcements in outdoor or semi-outdoor environments, improving information delivery and safety.
Medical and Laboratory Instrument Displays
In medical equipment and laboratory instruments, the G104AGE-L02 can display experimental data, test results, and operational interfaces. It meets the stringent requirements of medical and research environments for continuous and dependable operation.
FAQs
What is the G104AGE-L02 LCD?
The G104AGE-L02 is a 10.4-inch TFT LCD module featuring high brightness, stable performance, and wide viewing angles. It is suitable for harsh environments.
What are the key features of the G104AGE-L02 LCD?
High brightness and contrast for clear visibility.
Wide operating temperature range and vibration resistance.
Accurate color reproduction.
Fast response time suitable for dynamic content.
Where can the G104AGE-L02 LCD be used?
It is widely used in industrial control panels, factory automation, embedded display systems, transportation terminals, medical instruments, and entertainment devices.
What types of interfaces does the G104AGE-L02 support?
It supports standard industrial interfaces, allowing easy integration with PLCs, embedded systems, and other control devices.
