G104V1-T03 Description
The Innolux G104V1-T03 is a 10.4’’ TFT-LCD module with a white LED backlight and a 31-pin, 1-channel TTL interface. It supports 640 × 480 VGA resolution and displays 262,144 colors, providing clear visuals for industrial and embedded applications. The built-in LED backlight converter simplifies power design and reduces external components.
Compact and reliable, the G104V1-T03 ensures uniform brightness and efficient power usage. Its standard interface and color depth make it easy to integrate into HMIs, control panels, or portable devices, delivering stable performance for long-term use.
G104V1-T03 Technical Specifications
Below is a table of common specifications for the G104V1-T03 LCD screen from Innolux, for reference.
TYPE | DESCRIPTION |
Brand | |
Model | |
Size | |
Composition | a-Si TFT-LCD, LCM |
Resolution | 640(RGB)×480, VGA 76PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 211.2(W)×158.4(H) mm |
Bezel Opening | 215.4(W)×161.8(H) mm |
Outline Size | 225.5(W)×176.3(H) ×9.34(D) mm |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 1500:1 (Typ.) (TM) |
Viewing Angle | 88/88/88/88 (Typ.)(CR≥10) |
Response Time | 17/9 (Typ.)(Tr/Td) |
Display Colors | 262K 55% NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
Panel Weight | 395±50g |
Signal Interface | CMOS/TTL (1 ch, 6-bit) , 31 pins Connector |
Touchscreen | Without |
Max Ratings | Operating Temperature:-30 ~ 80 °C ; Storage Temperature: -30 ~ 80°C |
G104V1-T03 Key Features
This chapter provides a detailed overview of the core technical features of the G104V1-T03 LCD display module, covering a wide range of key features from optical performance to interface compatibility.
l Wide viewing angle
l High contrast ratio
l VGA (640 x 480 pixels) resolution
l Wide operating temperature
l DE (Data Enable) mode
l CMOS/TTL (Transistor-Transistor Logic) interface
l Reversible-scan direction
l RoHS Compliance
l LED Light Bar Replaceable

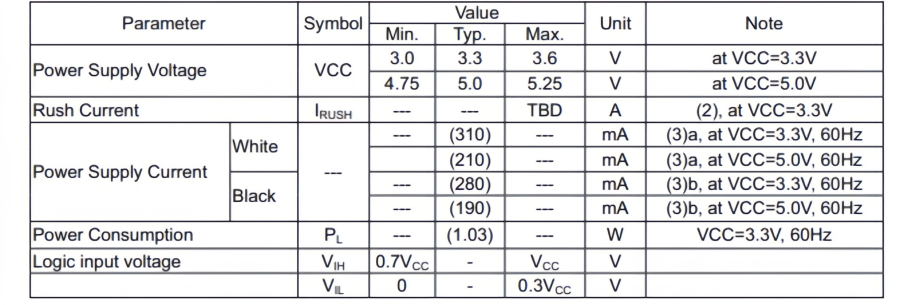

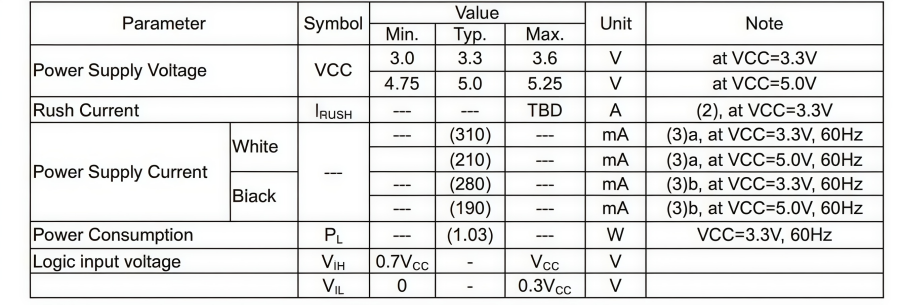

G104V1-T03 Electrical Characteristics
TFT LCD Module
Note (1) The module is recommended to operate within specification ranges listed above for normal
function.

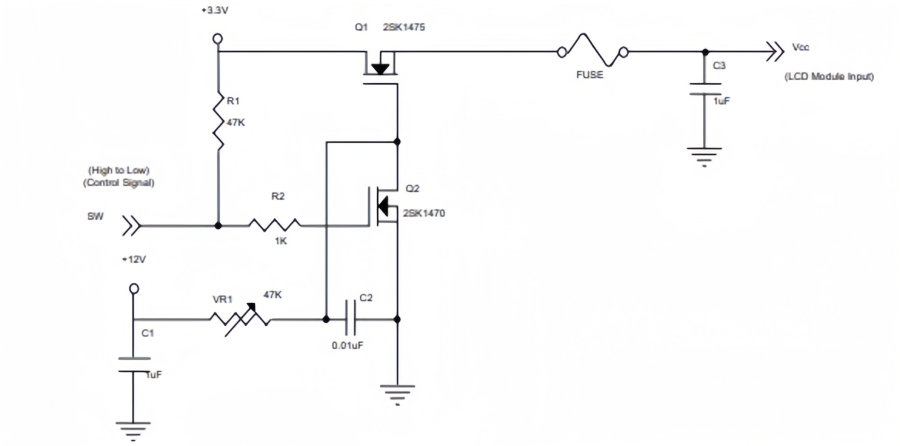

Note (2) Measurement Conditions:

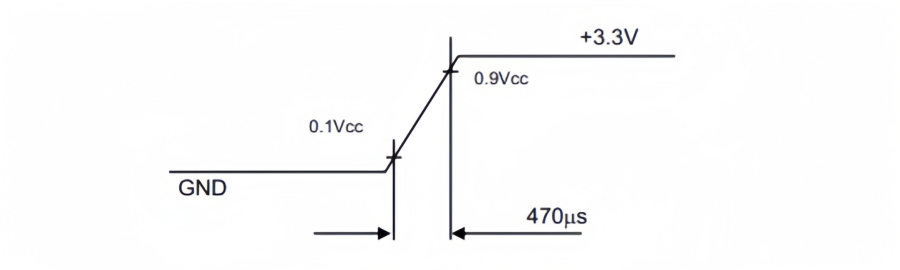

Vcc rising time is 470Ps

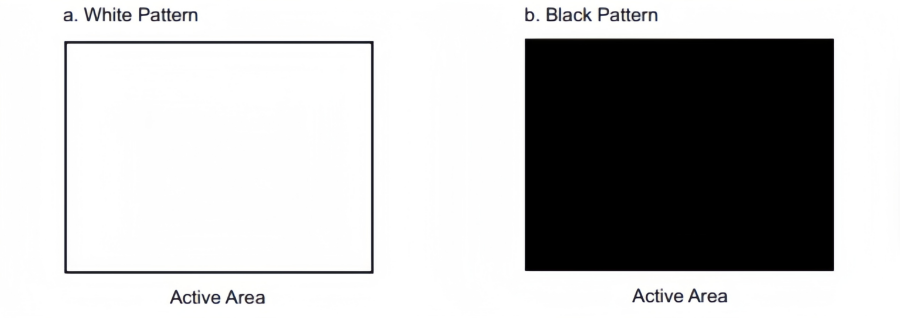

Note (3) The specified power supply current is under the conditions at Ta = 25 ± 2 ºC, fv = 60 Hz, whereas a power dissipation check pattern below is displayed.
G104V1-T03 Advantages & Differentiation
The G104V1-T03 demonstrates significant technical advantages and market differentiation in the industrial display sector. Its core strength lies in maintaining high-reliability image output while simplifying system integration through flexible hardware configurations.
The following are the detailed descriptions of its primary advantages and differentiating features:
Superior Environmental Adaptability
This model supports an ultra-wide operating temperature range (-30 to 80°C), far exceeding standard commercial-grade displays.
Efficient Maintainability
Unlike many fully sealed, non-repairable modules, the G104V1-T03 features a replaceable LED light bar design, extending the overall lifespan of the display unit.
Highly Flexible Installation
The integrated Reversible-scan function allows engineers to adjust the display direction directly via hardware pins.
Classic Signal Interface
It uses a CMOS/TTL interface with DE (Data Enable) mode support, and perfectly compatible with numerous legacy industrial controllers, facilitating seamless system upgrades.
Optimized Visual Clarity
Even in complex industrial lighting conditions, operators can accurately read data from multiple angles, reducing visual errors.
G104V1-T03 Display for Industrial Applications
The G104V1-T03 is not only suitable for various TFT LCD monitors, meeting users’ basic requirements for image quality and display performance, but is also widely used in industrial applications such as control panels, PLCs, human-machine interfaces (HMIs), etc. Moreover, the module performs excellently in entertainment devices.
1. TFT LCD Monitor
The G104V1-T03 features a 640×480 VGA resolution and supports 262,144 colors. The module also has a fast response time, capable of displaying clear dynamic images. It can be used in TFT LCD monitors, meeting users’ basic requirements for screen image quality and display performance.
2. Industrial Application
In industrial environments, the G104V1-T03 is widely used in factory automation control panels, programmable logic controllers (PLC), human-machine interfaces (HMI), and testing instruments. Operators can monitor production parameters, equipment status, and alarm information in real time through the display, improving efficiency and safety.
Additionally, the module’s low power consumption and built-in LED backlight control simplify system design and facilitate easy integration into industrial equipment.
3. Amusement
The G104V1-T03 is also well suited for entertainment and leisure devices, such as gaming machines, projector control panels, electronic toys, and self-service kiosks. Its high contrast and rich color render images more vivid, providing an intuitive and immersive user experience.
The module remains clearly readable under different lighting conditions, enabling efficient use in both indoor and outdoor settings, and enhancing device interactivity and playability.
Precautions
1. Assembly and Handing Precautions
(1) Do not apply rough force such as bending or twisting to the module during assembly.
(2) To assemble or install module into user’s system can be only in clean working areas. The dust and oil may cause electrical short or worsen the polarizer.
(3) It’s not permitted to have pressure or impulse on the module because the LCD panel and Backlight will be damaged.
(4) Always follow the correct power sequence when LCD module is connecting and operating. This can prevent damage to the CMOS LSI chips during latch-up.
(5) Do not pull the I/F connector in or out while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft dry cloth without chemicals for cleaning, because the surface of polarizer is very soft and easily scratched.
(8) It is dangerous that moisture come into or contacted the LCD module, because moisture may damage LCD module when it is operating.
(9) High temperature or humidity may reduce the performance of module. Please store LCD module within the specified storage conditions.
(10) When ambient temperature is lower than 10ºC may reduce the display quality, the response time will become slowly.
(11) Do not keep same pattern in a long period of time. It may cause image sticking on LCD.
2. Safety Precautions
(1) Do not disassemble the module or insert anything into the Backlight unit.
(2) If the liquid crystal material leaks from the panel, it should be kept away from the eyes or mouth. In case of contact with hands, skin or clothes, it has to be washed away thoroughly with soap.
(3) After the module’s end of life, it is not harmful in case of normal operation and storage.
FAQs
What is the primary application for the G104V1-T03?
It is specifically designed for industrial applications that require high reliability, such as factory automation, embedded systems, and outdoor terminals.
Can the backlight be repaired if it fails?
Yes, one of its unique advantages is the replaceable LED light bar design, which allows for maintenance without replacing the entire LCD module.
How do I flip the image if I install the screen upside down?
The module features a Reversible-scan function, allowing you to change the display direction via hardware pins rather than adjusting software code.
