G121X1-L03 Overview
The G121X1-L03 LCD is a 12.1’’ industrial-grade a-Si TFT-LCD display panel launched by Innolux Corporation. This product features XGA resolution (1024×768) with a 4:3 aspect ratio, delivering sharp and delicate imaging performance. Equipped with a built-in white LED backlight (WLED) and integrated LED driver circuit, it is suitable for a wide range of embedded and industrial devices.
Structurally, the G121X1-L03 belongs to the IAV (Improved Advanced Viewing) module, offering excellent viewing angle performance. It supports 262K / 16.2M color display realized by 6-bit + FRC technology, which can meet the basic color performance requirements of industrial control, medical equipment and automotive systems. Furthermore, it is configured with a 20-pin single-channel LVDS interface, facilitating integration with mainstream industrial motherboards and embedded systems.

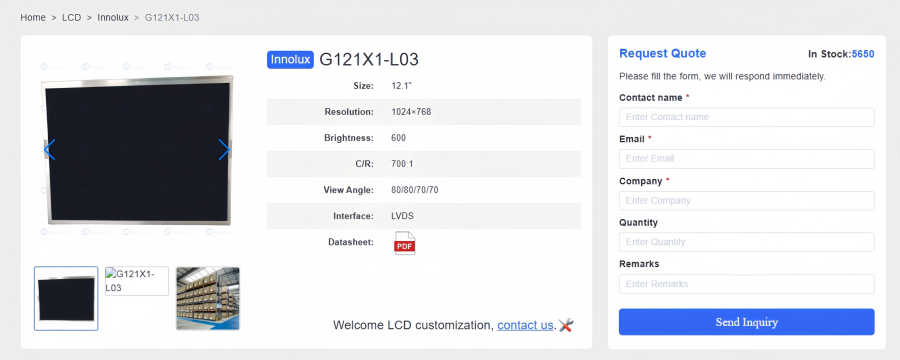

G121X1-L03 Specifications
To provide a clearer insight into the core performance and technical features of the G121X1-L03 display panel, its key specifications are detailed below. These parameters offer a comprehensive overview of the panel’s resolution, interface type, display quality, and environmental adaptability, serving as a vital reference for technical evaluation and application selection.
TYPE | DESCRIPTION |
Brand | Innolux |
Model | |
Size | |
Composition | LCM |
Resolution | 1024(RGB)×768, XGA 105PPI |
Luminance | 600 cd/m² (Typ.) |
Contrast Ratio | 700:1 (Typ.) (TM) |
Viewangle | 80/80/70/70 |
Color Depth | 262K/16.2M 63% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 249.0(W)×187.5(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3/5.0V (Typ.)(VCC) |
Weight | 510/540g (Typ./Max.) |
Outline Size | 260.5(W)×204(H) ×8.9(D) mm |
Max Ratings | Operating Temperature:-30 ~ 80 °C ; Storage Temperature: -40 ~ 85°C |
G121X1-L03 Features
In this section, we will outline the core functional features of the G121X1-L03 LCD. With these advantages, it can meet the needs of various embedded and professional application scenarios.
- Wide viewing angle
- High contrast ratio
- Fast response time
- XGA (1024 x 768 pixels) resolution
- Wide operating temperature
- DE (Data Enable) mode
- LVDS (Low Voltage Differential Signaling) interface
- Reversible-scan direction
- RoHS Compliance
- Lamp Replaceable
G121X1-L03 Interface & Connectivity
1. LVDS Interface
The G121X1-L03 adopts the widely used industrial LVDS (Low-Voltage Differential Signaling) transmission standard. The module typically features a 20-pin single-channel (1-ch) interface, supporting 6-bit or 8-bit data mapping. The interface generally uses DF14-20P-1.25H or similar connectors with physical locking mechanisms to prevent poor contact and ensure stable operation.
2. Signal Driving & System Compatibility
l x86 Platforms: Compatible with mainstream industrial motherboards (Intel/AMD). Most industrial boards provide 18/24-bit LVDS interfaces, which can drive the panel directly by configuring the corresponding resolution parameters (Panel ID) in the BIOS.
l ARM Platforms: Widely supported by Rockchip, Allwinner, and NXP i.MX series boards. For embedded development, adjusting the timing parameters in the device tree (DTS), such as clock frequency, H/V sync, enables pixel-accurate display with minimal effort.
3. Power & Backlight Requirements
Logic Power: The module’s logic circuitry uses a standard 3.3V (typical) supply. It is recommended to implement a proper power-on sequence to ensure logic voltage is applied before video signals, protecting the driver IC from damage.
Backlight Power & Control:
l CCFL Version: Requires a compatible high-voltage inverter, typically powered by 12V.
l LED Version: Modern variants usually have an integrated constant-current driver, requiring only 12V DC input. Brightness can be smoothly adjusted from 0–100% using a PWM (Pulse Width Modulation) signal.
Reliable Display Solutions for Industrial Control and Automation
In the field of industrial control and automation, displays are critical for ensuring stable production processes. The G121X1-L03 LCD is widely used across various industrial control and automation systems, providing clear and stable visuals to help operators monitor equipment status and production workflows in real time.
Strong Environmental Adaptability:
With a wide operating temperature range of -30°C to +80°C and a robust backlight structure, it performs reliably in injection molding workshops, high-temperature environments, or outdoor inspection terminals, offering excellent resistance to vibration and minor shocks.
Clear and Reliable Display:
A 1000:1 high contrast ratio and Super MVA wide viewing angles ensure that operators can accurately read parameters and monitor data from any angle, reducing the risk of errors.
Long-Term Supply and Low Maintenance Costs:
The LED backlight has a lifespan of up to 50,000 hours, and the LVDS interface is compatible with various industrial motherboards, supporting long-term operation and easy maintenance.
Typical Applications:
Suitable for automation line control cabinets (HMI), CNC machines, testing and measurement instruments, and power monitoring and dispatch systems.
Enhancing Visual Experience in Entertainment Systems
In modern entertainment devices, from arcade machines to interactive self-service terminals, the display not only conveys information but also directly impacts user immersion. The G121X1-L03 LCD, with its excellent image quality, has become a top choice for entertainment system integrators.
Immersive Visuals:
With a 1024×768 XGA resolution and up to 1000:1 contrast ratio, colors appear vivid and images retain clear depth and detail.
Wide Viewing Angles for Shared Experience:
Super MVA technology provides 80°/80°/80°/80° viewing angles, making it ideal for social and multi-user interactive scenarios.
High Brightness and Durability:
With 450–500 cd/m² brightness and an anti-glare coating, the display remains clear under various lighting conditions. The LED backlight boasts a 50,000-hour lifespan, supporting continuous operation and reducing maintenance costs.
Typical Applications:
Suitable for arcade and competitive gaming machines, gambling devices, interactive kiosks, and semi-outdoor display systems in theme parks.
Robust Display Performance for Vehicle Systems
In vehicle systems, display panels must withstand vibration, extreme temperatures, and complex lighting conditions. The G121X1-L03 LCD, with its industrial-grade robustness, is an ideal solution for vehicle monitoring, construction machinery dashboards, and specialized vehicle dispatch terminals.
Shock Resistance and Structural Reliability:
Its sturdy metal frame and optimized backlight design endure vehicle vibrations, while the 20-pin LVDS interface with anti-vibration cabling ensures stable signal transmission.
High Brightness and Anti-Glare:
With 450–500 cd/m² brightness and an anti-glare coating, combined with Super MVA wide viewing angles, both drivers and passengers can clearly read information from any angle.
Typical Applications:
Construction machinery dashboards, public transport monitoring terminals, specialized vehicle dispatch systems, and in-vehicle entertainment or rear-seat displays.
Precautions
Assembly & Handling:
1) Avoid bending, twisting, or applying impact to the module.
2) Install in a clean environment to prevent dust or oil contamination.
3) Do not apply pressure to the LCD panel or backlight.
4) Follow proper power-on sequence to prevent CMOS damage.
5) Do not plug/unplug the interface while operating.
6) Do not disassemble the module.
7) Clean with a soft, dry cloth only (no chemicals).
8) Keep moisture away to avoid damage during operation.
9) Store within specified temperature and humidity conditions.
10) Low temperatures (<10°C) may slow response time.
11) Avoid displaying static images for long periods to prevent image sticking.
Safety Precautions:
12) Do not disassemble or insert objects into the backlight unit.
13) If liquid crystal leaks, avoid contact with eyes or mouth; wash thoroughly if exposed.
14) The module is safe under normal use and storage at end of life.
