G170EG01 V1 Overview
AUO G170EG01 V1 is a 17’’ diagonal a-Si TFT-LCD display panel. This module supports SXGA+ resolution (1280 × 1024) and can display 16.7 million colors (RGB 6-bit + Hi-FRC), ensuring rich color reproduction and clear image depth.
In addition, the display module features a 2-channel LVDS input interface, compatible with most high-speed signal transmission standards, enabling fast data transfer and stable image refresh. The module also integrates an LED driver, simplifying the backlight system design and improving overall reliability and energy efficiency.
The G170EG01 V1 is ideal for applications such as industrial displays, monitoring systems, information kiosks, and embedded visualization devices, providing users with a high-quality visual experience.
G170EG01 V1 Specifications
Below is a table of common specifications for the G170EG01 V1 LCD panel, for reference.
TYPE | DESCRIPTION |
Brand | AUO |
Model | |
Size | |
Composition | a-Si TFT-LCD, LCM |
Resolution | 1280(RGB)×1024, SXGA 96PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 337.92(W)×270.336(H) mm |
Bezel Opening | 341.6(W)×274.0(H) mm |
Outline Size | 358.5(W)×296.5(H)×18(D) mm |
Brightness | 350 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
Response Time | 20/10 (Typ.)(Tr/Td) |
Display Colors | 16.7M 72% NTSC |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Voltage Supply | · 5.0V (Typ.) |
Panel Weight | 1.35Kgs (Typ.) |
Signal Interface | · LVDS (2 ch, 8-bit) , 30 pins Connector |
Touchscreen | Without |
Max Ratings | Operating Temperature:-30 ~ 85 °C ; Storage Temperature: -30 ~ 85°C |
G170EG01 V1 Signals

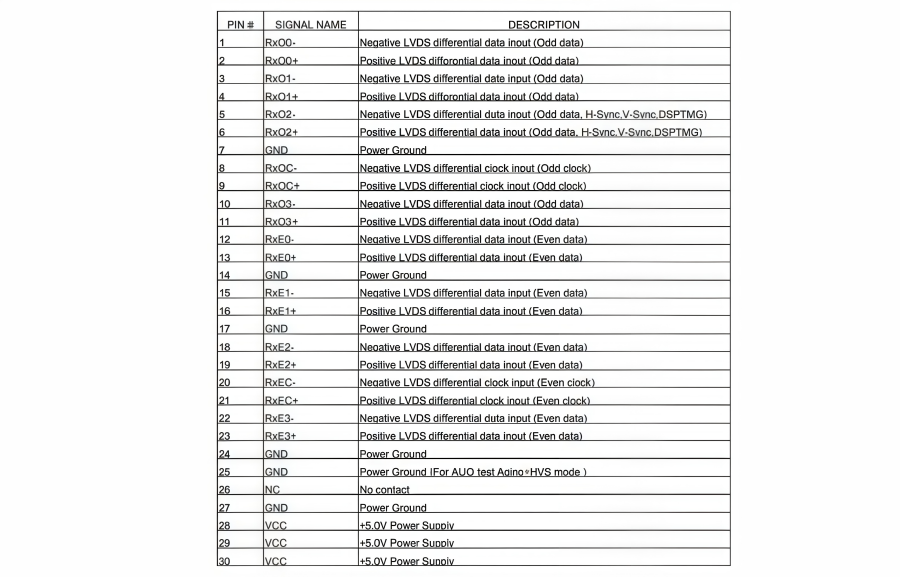

The module uses a pair of LVDS receivers, SN75LVDS82 (Texas Instruments) or equivalent. LVDS (Low-Voltage Differential Signaling) is a differential signaling technology commonly used for LCD interfaces and high-speed data transmission. The corresponding transmitter should be SN75LVDS83 (negative edge sampling) or compatible. The first LVDS port (RxOxxx) is responsible for transmitting odd pixels, while the second LVDS port (RxExxx) transmits even pixels.
G170EG01 V1 Features
The G170EG01 V1 TFT-LCD module integrates high-resolution display, rich color performance, and a high-speed LVDS interface. Below, we will introduce its key features, including display performance, interface design, backlight control, and reliability advantages, providing a reference for application design.
l High Resolution: Supports SXGA+ (1280 × 1024) for sharp images and clear text.
l Rich Colors: Displays 16.7M colors (RGB 6-bit + Hi-FRC) with natural and vivid visuals.
l High-Speed LVDS Interface: Features 2-channel LVDS input for fast data transfer and stable image refresh.
l Built-in LED Driver: Simplifies backlight design, enhances overall reliability, and reduces power consumption.
l Wide Viewing Angle: Maintains consistent color and brightness from multiple viewing angles.
l Long Backlight Lifespan: WLED backlight with ≥ 50,000 hours life, lowering maintenance cost and improving reliability.
l Replaceable Lamp Design: Backlight components can be replaced for easy maintenance and upgrades.
l Anti-Glare Surface: Matte finish reduces reflections and improves viewing comfort.
l Easy Module Integration: Upside interface design for simple system integration without a touchscreen.
Suitable Use Cases for G170EG01 V1
G170EG01 V1 is a high-resolution, color-rich LCD screen widely suitable for industrial applications, including industrial automation, medical, security, and embedded systems, where it delivers excellent performance.
Industrial Control Panels
The G170EG01 V1 can be used in PLC control systems, automated equipment, and factory monitoring terminals. It clearly displays production data, process status, and graphical information, ensuring operators can accurately read information from different viewing angles.
Monitoring and Security Systems
In CCTV monitoring, security consoles, and video management systems, the G170EG01 V1 provides stable and clear image display. Its rich colors and high resolution accurately render monitoring details, helping to detect abnormalities promptly.
Information Kiosks and Self-Service Terminals
Suitable for bank ATMs, ticketing machines at stations, and public information kiosks. The module’s high resolution and anti-glare treatment enhance the user reading experience. Its simple integration and reliable interfaces allow quick embedding into terminals, reducing system development costs.
Embedded Visualization Devices
Ideal for industrial embedded systems, controller display units, and custom hardware visualization interfaces. The compact module with an upside-down interface design facilitates integration, while its high-temperature resistance and vibration tolerance ensure stable operation in harsh environments and long-term reliability.
Medical Devices
In portable monitoring instruments, diagnostic equipment, and patient monitoring systems, the G170EG01 V1 display provides accurate color and clear, stable images. It ensures medical devices maintain display performance during continuous use, enhancing operational safety and efficiency.
Robotics and Automation Control
In robot control panels, sensor monitoring stations, and automated operation systems, the G170EG01 V1 delivers fast response and wide viewing angles, enabling operators to monitor status and parameters in real time.
What to Consider?
1) Since front polarizer is easily damaged, pay attention not to scratch it.
2) Be sure to turn off power supply when inserting or disconnecting from input connector.
3) Wipe off water drop immediately. Long contact with water may cause discoloration or spots.
4) When the panel surface is soiled, wipe it with absorbent cotton or other soft cloth.
5) Since the panel is made of glass, it may break or crack if dropped or bumped on hard surface.
6) Since CMOS LSI is used in this module, take care of static electricity and insure human earth when handling.
7) Do not open or modify the Module Assembly.
8) Do not press the reflector sheet at the back of the module to any directions.
9) When returning a module to its packing slot, press gently at the ends of the LED light bar, not the center, to avoid damaging the TFT module.
10) Do not rotate or tilt the Signal Interface Connector during insertion or removal.
11) Once installed in an enclosure, avoid twisting or bending the TFT module; ensure the enclosure design prevents any external bending/twisting forces.
12) The LCD module contains a small amount of non-flammable materials and must be powered according to Limited Power Source standards (IEC60950/UL1950) or equivalent exemptions.
FAQs
What is the G170EG01 V1?
It is a 17.0’’ a-Si TFT-LCD display module with SXGA+ resolution (1280 × 1024) and 16.7M colors (RGB 6-bit + Hi-FRC). It integrates an LED driver and uses a 2-channel LVDS interface for fast and stable data transmission.
Does it include a backlight?
Yes, it has an integral WLED backlight system with a built-in LED driver, simplifying the backlight design and improving reliability.
What is the expected backlight lifetime?
The WLED backlight has a long lifetime of ≥ 50,000 hours, making it suitable for industrial and long-term use.
How is it integrated into systems?
The module uses an Upside interface design, which simplifies integration into embedded systems without requiring touchscreens.
