G173HW01 V0 Description
G173HW01 V0 (also known as G173HW01 V.0) is a 17.3-inch a-Si TFT-LCD color display panel developed by AUO. It uses an active matrix structure and is built with a TFT-LCD panel, an LED driver circuit, and an LED backlight system. The overall design is mature and stable, making it suitable for applications that require a larger display size and reliable image quality.
In terms of display performance, G173HW01 V0 supports Full HD resolution (1920 × 1080) and can display 16.7 million colors (RGB 6-bit + Hi-FRC), which meets common image and video display needs. The panel uses a standard LVDS interface, allowing easy integration with host systems. Please note that this model does not include a backlight inverter, so an external backlight driving solution is required in system design.
G173HW01 V0 Structure & Design
G173HW01 V0 uses a high-strength aluminum alloy / steel metal rear frame. This structure provides excellent resistance to bending and also works as a natural heat sink for the internal parts. Its physical size is precisely controlled at 403.0 × 240.0 × 12.5 mm, and it follows a typical edge-lit backlight design.
The module has a high level of structural integration. Standard mounting holes are reserved on the rear side, and an integrated LED driver board (inverter-less design) is included. With a single 30-pin LVDS connector, users can connect both display data and backlight power. The front surface uses a glossy (glare) finish with a 3H hard protective layer. The panel structure is optimized to deliver 400 cd/m² brightness while avoiding yellowing or thermal deformation of the backlight module.
G173HW01 V0 Specifications
Below is a table of common specifications for the G173HW01 V0 LCD screen, for reference.
TYPE | DESCRIPTION |
Brand | AUO |
Model | |
Size | |
Composition | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 127PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 381.888(W)×214.812(H) mm |
Bezel Opening | 385.09(W)×218.01(H) mm |
Outline Size | 403(W)×240(H)×13(D) mm |
Brightness | 400 cd/m² (Typ.) |
Contrast Ratio | 600:1 (Typ.) (TM) |
Viewing Angle | 80/80/60/80 (Typ.)(CR≥10) |
Response Time | 37/3 (Typ.)(Tr/Td) |
Display Colors | 16.7M 72% NTSC |
Lamp Type | WLED [8S4P] , 50K hours , With LED Driver |
Frequency | 60Hz |
Voltage Supply | 3.3V (Typ.) |
Panel Weight | 1.08Kgs (Typ.) |
Signal Interface | LVDS (2 ch, 8-bit) 30 pins Connector |
Touchscreen | Without |
Max Ratings | Operating Temperature:0 ~ 70 °C ; Storage Temperature: -20 ~ 70°C |

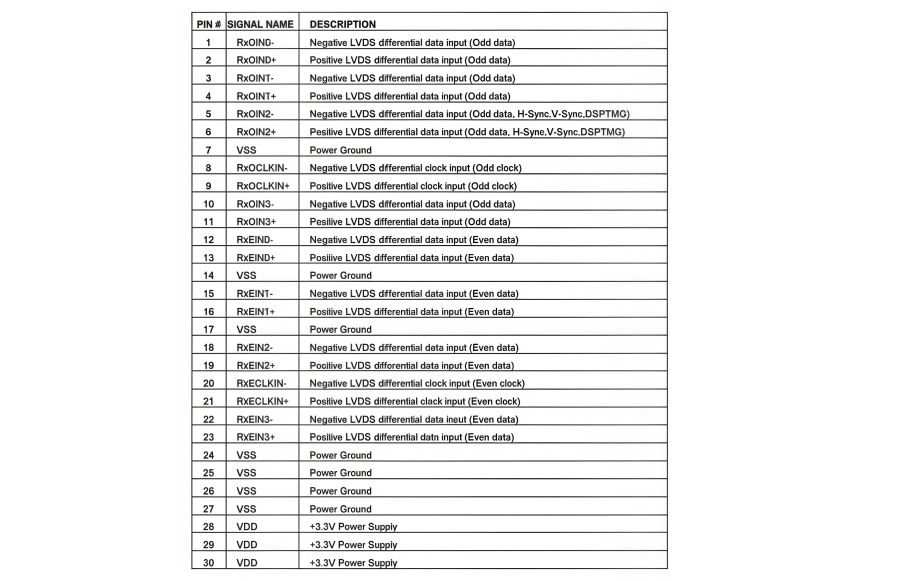

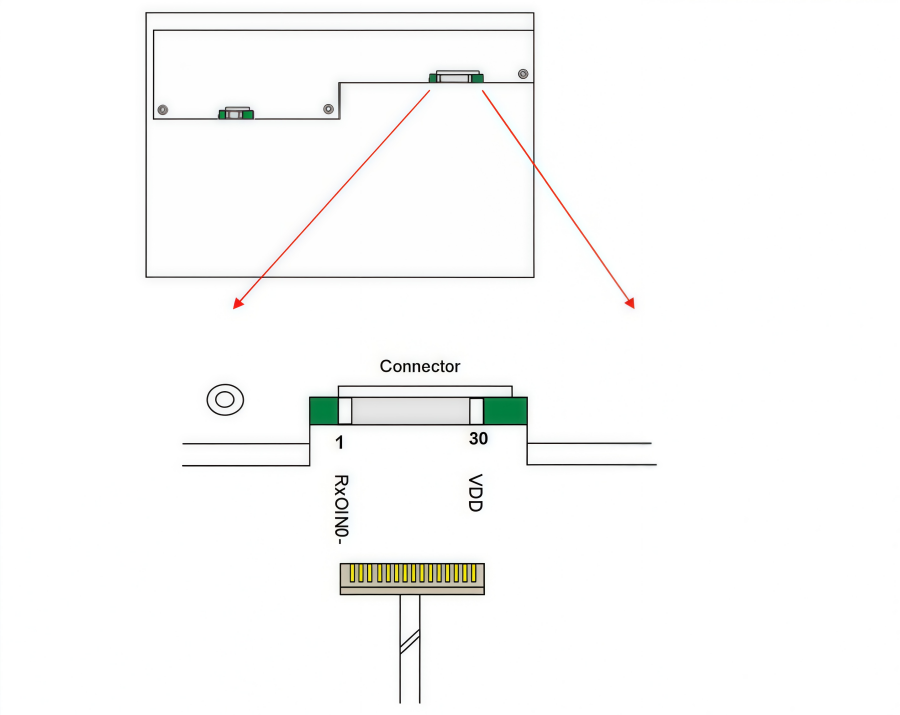

G173HW01 V0 Signal Description
The module using a pair of LVDS receiver SN75LVDS82(Texas Instruments) or compatible. LVDS is a differential signal technology for LCD interface and high speed data transfer device. Transmitter shall be SN75LVDS83(negative edge sampling) or compatible. The first LVDS port(RxOxxx) transmits odd pixels while the second LVDS port(RxExxx) transmits even pixels.
Note1: Start from left side
Note2: Input signals of odd and even clock shall be the same timing.
Note3: Please follow PSWG.
G173HW01 V0 Features
The G173HW01 V0, as a mature and stable industrial-grade TFT-LCD display panel, offers multiple practical advantages in display performance, structural design, and system compatibility. The following summarizes its key features in terms of resolution, interface, brightness, and mechanical structure.
l 17.3-inch a-Si TFT-LCD panel with active matrix design
l Full HD resolution (1920 × 1080) for clear and detailed images
l 16.7 million colors (RGB 6-bit + Hi-FRC) for smooth color display
l LVDS interface for stable and widely compatible signal transmission
l LED backlight with inverter-less design, easy to integrate
l High brightness up to 400 cd/m², suitable for indoor and semi-industrial use
l Robust metal rear frame for strong mechanical support and heat dissipation
l Edge-lit backlight structure, slim and space-efficient
l Glossy surface with 3H hard coating for enhanced durability
l Standard mounting holes for convenient system installation
Where to Use G173HW01 V0?
G173HW01 V0, with its high-definition display, stable brightness, and robust structure, is widely suitable for various industrial applications. Whether in control systems, equipment monitoring, or industrial automation terminals, this panel provides clear and stable visuals while supporting long-term, high-intensity operation. The main industrial application areas are outlined below:
Industrial Control System Displays
G173HW01 V0 can be used as the display terminal for PLCs, CNC machines, and automated production lines, providing operators with real-time system status, parameter settings, and alarm information. Its FHD resolution and high brightness ensure clear readability even in complex industrial environments.
Equipment Monitoring and Operation Interfaces
For industrial equipment monitoring and operation, the panel can display equipment status, process data, and visual interfaces, improving operational efficiency and monitoring accuracy. Its durable metal back frame and anti-bending design are suitable for long-term continuous operation.
Industrial Instruments and Measurement Devices
Suitable for various industrial measurement instruments and analytical devices, G173HW01 V0 can display complex data and trend charts, helping engineers perform precise monitoring and decision-making. Low light leakage and uniform brightness ensure reliable and easy-to-read display data.
Industrial Automation Terminals and Human-Machine Interfaces (HMI)
As a core display module for HMIs, this panel supports touch or button-operated interfaces, providing clear graphical displays that enhance user interaction in industrial automation systems. Its high-temperature and vibration-resistant design ensures stable operation in harsh environments.
Laboratory and R&D Equipment Displays
In research laboratories and industrial R&D equipment, G173HW01 V0 can display test data, experimental procedures, or monitoring screens, offering engineers intuitive and stable visual information for effective analysis and control.
What to Consider?
1. Avoid scratching the front polarizer.
2. Turn off power before connecting or disconnecting the input connector.
3. Wipe off water immediately to prevent discoloration or stains.
4. Clean the panel surface with soft cloth or absorbent cotton only.
5. The glass panel may crack if dropped or hit on hard surfaces.
6. Ground yourself to prevent ESD damage before handling the module.
7. Do not open or modify the module.
8. Do not press the rear reflector sheet.
9. When repacking, press gently on both ends of the LED light bar edge, not the center.
10. Do not rotate or tilt the signal interface connector during insertion or removal.
11. Do not twist or bend the TFT-LCD module; avoid external force in product design.
12. Use a Limited Power Source (IEC60950 / UL1950 compliant or exempted).
13. Extreme temperatures may affect luminance, response time, and lamp voltage.
14. Long-term operation at low temperature may reduce luminance and lamp life.
15. Specifications apply when the module is used in landscape orientation.
16. Avoid long-term fixed images; use screen saver or change content regularly.
FAQs
Is the screen surface matte or glossy?
The AUO G173HW01 V0 typically comes with a Glare (Mirror) surface treatment and a 3H hard coating, which provides vibrant colors and better clarity, though it may reflect light more than a matte finish.
Does it require an external LED inverter?
No. One of its key structural advantages is the integrated LED driver circuit. You can power and dim the backlight directly through the main 30-pin interface without a separate high-voltage inverter.
Is there a touch screen included?
The standard G173HW01 V0 is a non-touch module. However, its flat metal bezel design makes it very easy to integrate with a 17.3" projected capacitive (PCAP) or resistive touch overlay.
