Introduction and Overview to LQ121S1LG88
The Sharp LQ121S1LG88 is a 12.1-inch color TFT-LCD display that uses amorphous silicon thin-film transistor (a-Si TFT) technology. It consists of a TFT-LCD panel, driver ICs, a control circuit, a power supply circuit, and a white LED backlight unit. The module supports an 800 × 600 (SVGA) resolution and can display approximately 262,144 colors. It uses a Low-Voltage Differential Signaling (LVDS) interface for image data transmission and requires a 3.3V DC supply voltage for panel operation.
In the display performance, the LQ121S1LG88 supports independent RGB gamma adjustment to provide natural grayscale transitions. Its optimal viewing direction is at the 6 o'clock position, while grayscale inversion is less likely when viewed from the 12 o'clock direction. The module also integrates an LED driver circuit and a PWM circuit for backlight control, simplifying the external circuitry required for backlight operation and making it suitable for equipment that requires reliable display performance and convenient integration.
Key Specifications
The table below highlights the key specifications of the LQ121S1LG88, including its display size, resolution, interface, operating temperature, backlight, and more.
TYPE | DESCRIPTION |
Brand | |
Model | LQ121S1LG88 |
Size | |
Composition | LCM |
Resolution | 800(RGB)×600, SVGA 82PPI |
Luminance | 450 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewangle | 80/80/60/80 |
Color Depth | 262K 53% NTSC |
Light Source | WLED , 50K hours , With LED Driver |
Interface Type | LVDS (1 ch, 6-bit) , 20 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 249.0(W)×187.5(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 750g (Max.) |
Outline Size | 276(H)×209(V) ×9.6(D) mm |
Max Ratings | Operating Temperature:-15 ~ 70 °C ; Storage Temperature: -30 ~ 80 °C |

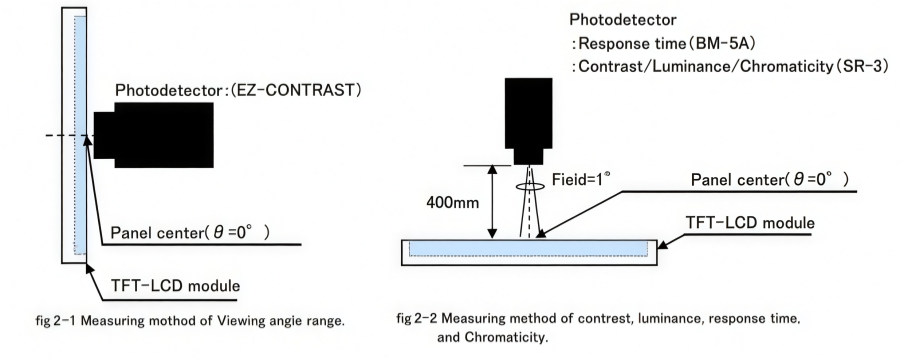

Display Quality: Brightness, Contrast & Viewing Performance
The LQ121S1LG88 delivers excellent brightness and contrast performance. Its typical luminance of white reaches 450 cd/m², with a minimum value of 350 cd/m². The typical contrast ratio is 800:1, with a minimum of 500:1 when viewed from the optimal angle.
The display also offers a good viewing angle range, enhancing the user experience in human-machine interface (HMI) applications. Under the condition of CR > 10, the typical horizontal viewing angle is 80° to the left and right. The typical vertical viewing angles are 60° upward (θ11) and 80° downward (θ12).
Backlight System & LED Driver Architecture
The Sharp LQ121S1LG88 features an integrated white LED (WLED) backlight system designed to provide consistent illumination and simplify system integration. Its built-in LED driver and PWM control circuit support backlight operation and brightness adjustment, reducing the need for external driver components.
l Backlight Architecture: Uses a white LED backlight unit integrated into the LCD module.
l Service Life and Power Efficiency: Evaluate backlight lifetime and power consumption based on the official datasheet and actual operating conditions. The 50,000-hour MTBF figure should be verified before publication.
l PWM Dimming and Driver Design: The integrated PWM circuit supports backlight control. Confirm the supported dimming range and control requirements before system implementation.

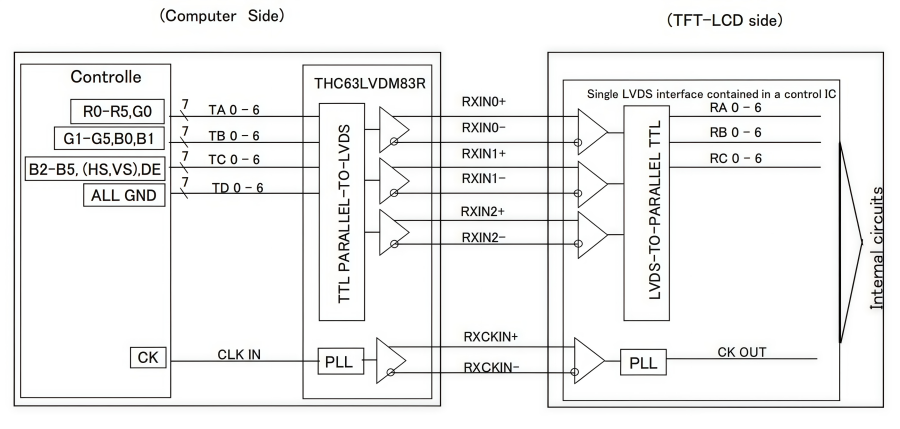

Interface Block Diagram
This interface block diagram illustrates the LVDS signal transmission process between the host system and the display module. The host controller's parallel RGB image data and clock signals are serialized by a TTL-to-LVDS converter into three differential data pairs and one differential clock pair. The built-in control IC on the display module then decodes the signals through an LVDS-to-parallel TTL circuit, converting them back into parallel TTL signals. This process significantly reduces wiring complexity and helps minimize electromagnetic interference (EMI).
LQ121S1LG88 TFT LCD Module for Industrial Applications
The Sharp LQ121S1LG88 is suitable for a wide range of industrial display applications, including industrial control panels, human-machine interfaces (HMIs), embedded systems, and automation equipment. This section explains its suitability for industrial applications.
1. Industrial Control Panels
The LQ121S1LG88 displays equipment status, production data, alarms, and operating menus, helping operators monitor and control industrial systems.
2. Human-Machine Interfaces (HMI)
The module presents equipment status, control commands, real-time data, and feedback. Touch functionality requires a separate touch panel.
3. Industrial Automation Equipment
In production lines, inspection equipment, and process control systems, the LQ121S1LG88 displays operating parameters, process information, equipment status, and fault alerts.
4. Embedded Industrial Devices
The module can be integrated into industrial terminals, instruments, and maintenance systems, providing a visual interface alongside the main controller and control software. Compatibility depends on system interface, electrical, and mechanical requirements.
LQ121S1LG88 TFT LCD Module for Digital Photo Frame
The LQ121S1LG88 can be used in digital photo frames to provide a clear display for digital photos and images. It can be integrated into photo frame devices for everyday photo viewing and presentation.
1. Family Photo Display
The LQ121S1LG88 can be used in home digital photo frames to display family photos, travel pictures, and everyday memories. Users can browse and switch between photos with ease.
2. Slideshow and Photo Rotation
The module can be integrated into digital photo frames with automatic slideshow features, continuously displaying photo collections in living rooms, bedrooms, and offices.
3. Commercial Image Display
Digital photo frames equipped with the LQ121S1LG88 can display product images, event photos, and promotional visuals in retail stores, reception areas, and small businesses, providing visitors with an accessible visual presentation.
LQ121S1LG88 Datasheet

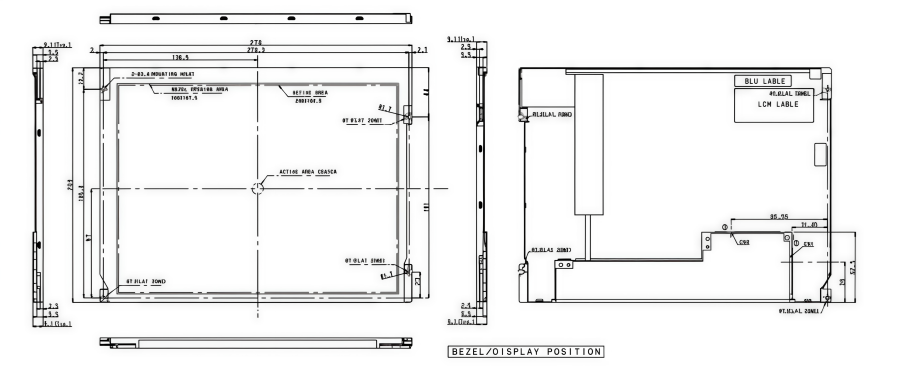

Mechanical Dimensions
Handling Precautions
1) Turn off the power before connecting or disconnecting cables.
2) Avoid scratching the polarizer. Clean the panel with a soft cloth and wipe off water immediately.
3) Handle the glass panel carefully to prevent cracks or breakage.
4) Protect the module from static electricity and follow proper ESD precautions.
5) Avoid mechanical stress or constant pressure on the module’s back.
6) Keep the LCD away from direct sunlight, corrosive gases, and chemicals that may cause discoloration.
7) Connect GND properly to reduce EMI and external noise.
8) Avoid prolonged display of fixed images to reduce the risk of image retention.
9) Do not disassemble the module or remove the black tape.
10) Do not change factory-adjusted settings, as this may affect specifications.
11) If using a cooling fan, install fine-pitch filters to prevent dust from entering the module.
12) When installing a protective cover, ensure it does not degrade optical performance.
13) Check material compatibility with adhesives, resins, and packaging materials to prevent polarizer damage or display defects.
14) If liquid crystal leaks from a broken panel, avoid contact with the eyes or mouth and rinse immediately if exposure occurs.
