Memory chips are an important component of digital chips, capable of storing programs and various data, and can perform high-speed, automatic access to programs or data during computer operation. The following is a basic types of memory chips:

Get Fast Quotes Here

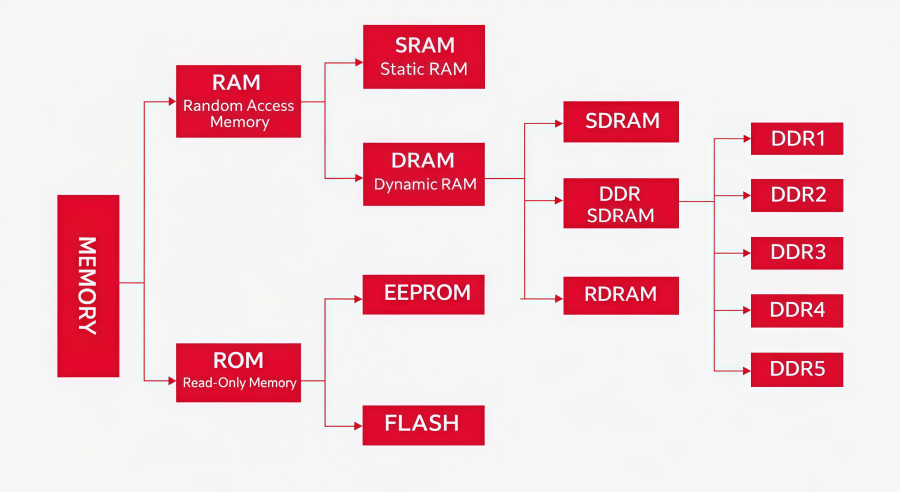

Memory is mainly divided into two types: Read-Only Memory (ROM) and Random Access Memory (RAM).

What is Read-Only Memory (ROM)?

The data stored in ROM is usually written in advance before the device is assembled. During normal operation, the data can only be read. ROM data is stable and will not change even when the power is turned off.

What is Random Access Memory (RAM)?

RAM is an internal memory that directly exchanges data with the CPU. It can be read from and written to at any time, with high speed. RAM is usually used as temporary storage for the operating system or other programs currently running. However, when the power is turned off, RAM cannot retain data.

Facts About Volatile Memory (RAM)

Volatile memory (RAM) is an internal memory that can directly exchange data with the CPU. Its essence is as a temporary data storage medium, with high-speed read and write capabilities. RAM is mainly used for temporarily storing data of the operating system and programs currently running. According to the structure of its memory cells, RAM can be divided into two main types: Static Random Access Memory (SRAM) and Dynamic Random Access Memory (DRAM).

1. Static Random Access Memory (SRAM)

SRAM is a type of volatile memory that uses flip-flop circuits to stably store data in each memory cell. SRAM maintains the data state continuously during power supply through flip-flops made of transistors, without needing periodic refresh like DRAM. Its main characteristics include high-speed read and write, low access latency, strong data stability, and good noise immunity. However, it has a higher cost and lower cell density, so it is typically used in CPU caches and high-speed registers.

2. Dynamic Random Access Memory (DRAM)

DRAM is a type of volatile memory. Unlike SRAM, it stores data in each memory cell using a capacitor to hold electric charge. Because the charge in the capacitor leaks over time, DRAM requires periodic refresh to maintain data integrity. DRAM features high storage density and low cost, but its read and write speeds are relatively slower, making it suitable as the main memory of a computer.

Depending on technology and interface, DRAM mainly includes SDRAM, DDR SDRAM, and RDRAM, catering to different system requirements for speed, bandwidth, and latency.

1) Synchronous Dynamic Random Access Memory (SDRAM)

SDRAM is an improved type of DRAM. Unlike traditional asynchronous memory, SDRAM operates in synchronization with the CPU clock. This synchronous mechanism allows the CPU to perform other operations while requesting data and enables multiple instructions to be processed within a single clock cycle, greatly improving data transfer efficiency.

SDRAM is the cornerstone of modern memory technology. It is the common ancestor of all DDR-series memories and laid the foundation for modern memory control logic.

2) Double Data Rate Synchronous Dynamic Random Access Memory (DDR SDRAM)

DDR SDRAM is a memory technology developed based on SDRAM. Compared with traditional SDRAM, DDR SDRAM can transfer data on both the rising and falling edges of the clock signal, achieving two data transfers per clock cycle. This effectively doubles the data transfer rate without increasing the clock frequency.

The DDR memory series has continuously evolved with technology, from the original DDR (DDR1) to DDR2, DDR3, DDR4, and the currently widely used DDR5. Each generation has brought improvements in frequency, bandwidth, power consumption, and data processing efficiency.

3) Rambus Dynamic Random Access Memory (RDRAM)

RDRAM is a high-speed memory technology developed by Rambus Inc. to provide higher bandwidth and lower latency than traditional SDRAM. RDRAM transfers data through a dedicated high-speed bus called the Rambus Channel, supports high-frequency operation, and can achieve point-to-point connections to reduce bus congestion.

Due to its high cost, greater power consumption, and limited compatibility with mainstream memory controllers, RDRAM has had relatively limited market adoption, mainly used in early high-performance computers and professional graphics systems.

Get Fast Quotes Here

Facts About Non-Volatile Memory (ROM)

ROM is a type of non-volatile memory. Its essence is that data is permanently written into memory cells before manufacturing or device assembly, and during normal use, it can only be read and not modified. The data in ROM is highly stable and will not be lost even when the power is turned off, making it commonly used to store firmware, operating system boot programs (bootloaders), and fixed programs in various embedded systems.

1. Electrically Erasable Programmable Read-Only Memory (EEPROM)

EEPROM is a type of non-volatile memory whose data can be erased and reprogrammed electrically without removing the memory chip. It supports byte-level erasure and reprogramming electronically. This type of memory is commonly used to store small amounts of critical information, such as BIOS firmware on motherboards or configuration parameters of devices.

2. Flash Memory

Although Flash is classified as ROM, it is actually a variant of EEPROM. The key difference is that Flash is erased and written in blocks, making it suitable for handling large amounts of data.

Flash successfully bridges embedded storage (such as code storage inside microcontrollers) and large-capacity external storage (such as TB-level SSDs). It offers faster write speeds, larger capacity, and lower cost, making it widely used in solid-state drives (SSD), USB drives, memory cards, embedded systems, and mobile devices.

How to Match the Type of Memory with Its Example?

There are many types of memory, each with its own characteristics in structure, function, and application. By understanding the basic properties and typical uses of each memory type, you can quickly match them with specific examples, making it easier to grasp the role of different kinds of memory.

1. Volatile Memory

This type of memory only stores data while the system is powered on and running programs.

DRAM / DDR series: corresponds to computer memory modules.

l  Computer motherboard BIOS firmware

l  Embedded system program storage

SRAM (Static RAM): corresponds to CPU cache (Cache).

l  CPU cache

l  High-speed registers

SDRAM: corresponds to older computer memory or onboard memory on some embedded development boards.

l  Main memory of a computer

l  System RAM in laptops or desktops

2. Non-Volatile Memory

This type of memory is responsible for permanently storing system code and your personal files.

ROM (classic read-only memory): corresponds to game cartridges or factory-programmed code.

l  Computer motherboard BIOS firmware

l  Embedded system program storage

Flash Memory: corresponds to solid-state drives, USB drives, or built-in mobile storage.

l  Solid-state drives (SSD)

l  USB drives

l  Memory cards

l  Embedded system storage

EEPROM: corresponds to hardware configuration chips.

l  Microcontroller configuration parameters

l  Motherboard BIOS settings
