NL10276BC30-34D TFT LCD Module Overview
NL10276BC30-34D is a 15.0-inch TFT LCD display module that uses a-Si TFT-LCD technology and features a 1024 × 768 (XGA) resolution. It adopts a TN, Normally White, Transmissive display mode. The module is equipped with a WLED backlight, offering a typical brightness of around 500 cd/m² and a contrast ratio of approximately 600:1, with support for about 16.7 million displayable colors.
In terms of interface and reliability, the NL10276BC30-34D uses a 1-channel 8-bit LVDS interface and supports selectable LVDS input mapping and reversible scan direction, making it easier to integrate into different display systems. It also offers a relatively wide operating temperature range of approximately -20°C to +70°C. Combined with its long-life LED backlight and anti-glare surface treatment, the module is well suited for industrial display applications.
NL10276BC30-34D Specifications at a Glance
The table below highlights the key specifications of the NL10276BC30-34D, including its display size, resolution, interface, operating temperature, backlight, and more.
TYPE | DESCRIPTION |
Brand | |
Model | NL10276BC30-34D |
Size | |
Composition | LCM |
Resolution | 1024(RGB)×768, XGA 85PPI |
Luminance | 500 cd/m² (Typ.) |
Contrast Ratio | 600 : 1 (Typ.) (TM) |
Viewangle | 80/80/80/80 |
Color Depth | 16.7M 50% NTSC |
Light Source | 6 strings WLED , 70K hours , Optional |
Interface Type | LVDS (1 ch, 8-bit) , 20 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 307.4(W)×231.3(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 0.97/1.05Kgs (Typ./Max.) |
Outline Size | 326.5 × 253.5 × 12 (H×V×D) |
Max Ratings | Operating Temperature:-20 ~ 80 °C ; Storage Temperature: -20 ~ 70 °C |
NL10276BC30-34D Structure and Principle
Color LCD module NL10276BC30-34D is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film
Transistor) array and a backlight.
The a-Si TFT LCD panel structure is injected with liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate. Color (Red, Green, Blue) data signals from a host system (e.g., signal generator, etc.) are modulated into the best form for an active matrix system by a signal processing board, and sent to the driver LSIs, which drive the individual TFT arrays.
The TFT array as an electro-optical switch, regulates the amount of transmitted light from the backlight assembly when it is controlled by data signals. Color images are created by regulating the
amount of transmitted light through the TFT array of red, green and blue dots.
NL10276BC30-34D Backlight: LED Type and Features

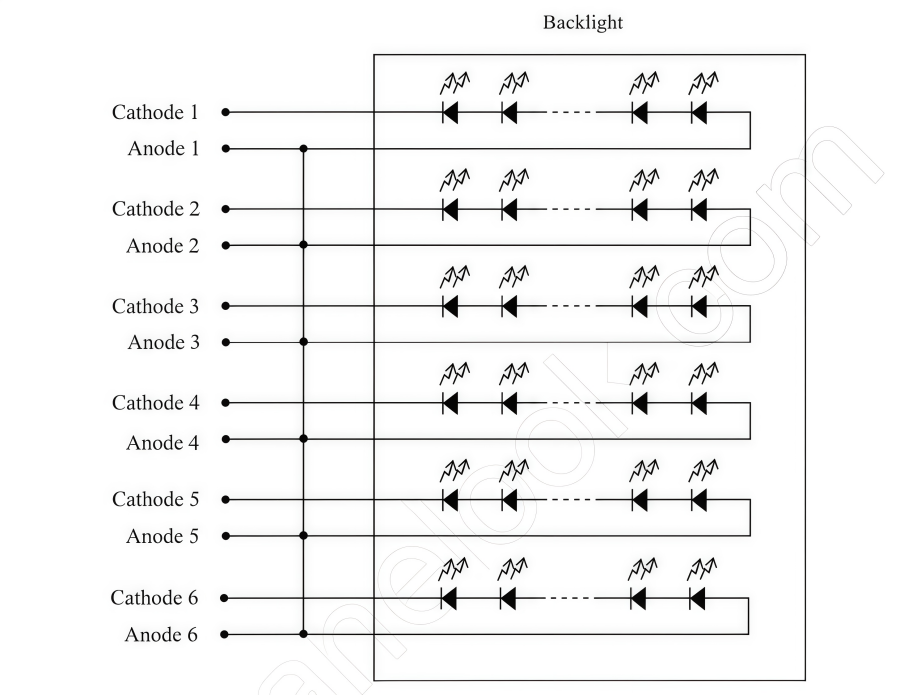

The NL10276BC30-34D uses an LED backlight system consisting of six independent LED strings, with each string connected to a separate anode and cathode terminal. Each LED string contains multiple LEDs connected in series and is powered and controlled through the corresponding anode and cathode pins. This grouped backlight structure helps provide stable and uniform screen illumination while simplifying backlight driving and circuit design in the display system.
What LVDS Interface Does NL10276BC30-34D Use?
The NL10276BC30-34D uses a 1-channel (1-port), 8-bit LVDS interface for its display signal input. It supports 1024 × 768 XGA resolution and transmits 8-bit RGB color data, along with the pixel clock (CLK) and data enable (DE) signals. The module uses a 20-pin connector, with four differential data pairs (D0± to D3±) and one differential clock pair (CLK±).
The MSL pin selects the LVDS input mapping: Input Map A or Input Map B. The LVDS differential pairs should use twisted-pair wiring with approximately 100 Ω characteristic impedance.
Why to Choose NL10276BC30-34D LCD Panel?
The NL10276BC30-34D is designed for industrial and other demanding display applications. It provides excellent display performance, durability, and integration flexibility.
Key Advantages of NL10276BC30-34D:
l Provides a 1024 × 768 resolution for clear and detailed industrial display applications.
l The integrated WLED backlight offers a service life of 70,000 hours or more, supporting long-term operation.
l Supports a wide viewing range, allowing users to view the screen clearly from different positions.
l Provides quick pixel response for smoother image transitions and reduced motion blur.
l Supports reversible scan direction and selectable LVDS input maps, offering greater flexibility during system integration.
l The replaceable lamp holder design makes backlight maintenance and replacement more convenient.
l Supports operation from -20℃to 70℃, making it suitable for various industrial environments.
l Complies with the European RoHS Directive (2002/95/EC).
Where Is NL10276BC30-34D Used?
The NL10276BC30-34D offers multiple advantages to meet the display requirements of various devices. Therefore, this LCD panel is suitable for most industrial professional display equipment.
1. Industrial Control and Automation Equipment
The 15.0-inch screen and 1024 × 768 resolution of the NL10276BC30-34D are suitable for displaying equipment status, operating parameters, alarm information, and control interfaces.
l PLC control cabinets
l Industrial HMI systems
l Automation control terminals
2. Test and Measurement Equipment
This LCD panel provides clear and stable data display for real-time measurement results, waveforms, parameters, and equipment status, making it suitable for professional testing equipment designed for continuous operation.
l Oscilloscopes
l Electronic test instruments
l Industrial inspection equipment
3. Embedded Terminals
The NL10276BC30-34D supports selectable LVDS input mapping and scan direction, providing flexibility for system integration in various professional embedded display terminals.
l CNC machine displays
l Robot control terminals
l Industrial information terminals
4. Monitoring and Security Equipment
The 15-inch display area provides clear and intuitive information presentation, making it suitable for centralized display of monitoring images, equipment status, and system alarm information.
l Industrial monitoring terminals
l Security monitoring equipment
NL10276BC30-34D Datasheet
Handling Precautions
1) Hold both ends of the LCD module without touching the PCB to avoid damage or misadjustment.
2) When temporarily placed on a table, keep the display surface facing downward.
3) Use appropriate ESD protection, such as a grounding wrist strap or ionizer.
4) Do not exceed 0.343 N·m; mounting screws must be ≤ 2.8 mm long.
5) Install through the specified mounting holes without bending, twisting, or applying excessive force to the bezel.
6) Do not press or rub the panel surface. Use a soft, dry cloth for cleaning.
7) Do not connect or disconnect interface connectors while the LCD module is operating.
8) Use the original protective sheet when handling the polarizer. Avoid adhesive protective films that may affect its color or properties.
9) If the glass breaks and liquid crystal contacts it, wash the affected area thoroughly with soap and water.
FAQs
What is the NL10276BC30-34D?
The NL10276BC30-34D is a 15.0-inch a-Si TFT-LCD panel with a 1024 × 768 XGA resolution. It uses a TN, normally white, transmissive display mode and is designed for industrial applications.
What interface does the NL10276BC30-34D use?
It uses a 1-channel, 8-bit LVDS interface with a 20-pin connector. The panel also supports selectable LVDS input mapping and reversible scan direction.
What type of backlight does the NL10276BC30-34D use?
The NL10276BC30-34D uses a WLED backlight with six LED strings. The backlight is designed for a long service life of around 70,000 hours, with an optional LED driver.
Does the NL10276BC30-34D have a touch screen?
No. The standard NL10276BC30-34D is supplied without a touch panel, so a separate touch solution can be integrated according to the application requirements.
