What Is the NL8060BC21-11C?
The NL8060BC21-11C is an 8.4-inch industrial-grade TFT LCD display module developed by NEC Corporation. It uses a-Si TFT-LCD technology and features a resolution of 800 × 600 (SVGA), along with LED backlighting and an LVDS interface.
The NL8060BC21-11C delivers approximately 800 cd/m² high brightness, a contrast ratio of 800:1, and a wide operating temperature range of -30°C to +80°C, making it suitable for demanding industrial environments. It also supports 6-bit/8-bit RGB input, a replaceable LED backlight design, and a single-channel LVDS interface, enabling easy system integration and maintenance. As a result, it is widely used in various industrial applications.
NL8060BC21-11C Structure and Principle
Color LCD module NL8060BC21-11C is composed of the amorphous silicon thin film transistor liquid crystal display (a-Si TFT LCD) panel structure with driver LSIs for driving the TFT (Thin Film Transistor) array and a backlight. The a-Si TFT LCD panel structure injects liquid crystal material into a narrow gap between the TFT array glass substrate and a color-filter glass substrate. Color (Red, Green, Blue) data signals from a host system (e.g., signal generator, etc.) are modulated into the best form for the active matrix system by a signal processing board, and sent to the driver LSIs, which drive the individual TFT arrays.
The TFT array, as an electro-optical switch, regulates the amount of transmitted light from the backlight assembly when it is controlled by data signals. Color images are created by regulating the amount of transmitted light through the TFT array of red, green and blue dots.
NL8060BC21-11C Specifications
The NL8060BC21-11C, as an industrial-grade TFT LCD display module, delivers reliable display performance. The following are its key technical specifications.
TYPE | DESCRIPTION |
Brand | |
Model | NL8060BC21-11C |
Size | |
Composition | LCM |
Resolution | 800(RGB)×600, SVGA 119PPI |
Luminance | 800 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewangle | 80/80/80/80 |
Color Depth | 262K/16.7M 40% NTSC |
Light Source | WLED [4 strings] , 70K hours , W/O Driver |
Interface Type | LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 174.0(W)×131.4(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 260/280g (Typ./Max.) |
Outline Size | 200(H)×152(V) ×8.7(D) mm |
Vibration Level | 2.0G (19.6 m/s²) |
Max Ratings | Operating Temperature:-30 ~ 80 °C ; Storage Temperature: -30 ~ 80°C |
NL8060BC21-11C Key Features
The NL8060BC21-11C features multiple key characteristics for display applications, including high brightness, high contrast, wide viewing angles, and a wide operating temperature range, enabling stable and clear display performance in complex environments.
l Adoption of T-EVT (Transmissive-Enhanced View TFT
l Wide viewing angle
l High luminance
l High contrast
l Low reflection
l ColorXcell technology (Color Enhancement)
l Wide temperature range
l LVDS interface
l Reversible-scan direction
l Selectable 8-bit or 6-bit digital signals for data of RGB
l Long life LED backlight
l Replaceable lamp for backlight
l Acquisition product for UL60950-1 /CSA C22.2 No.60950-1-03 (File number: E170632)
l Compliant with the European RoHS directive (2011/65/EU)
Advantages of Choosing NL8060BC21-11C
In industrial display and outdoor terminal applications, the NL8060BC21-11C has become a preferred choice for many high-demand projects due to its excellent hardware specifications and industrial-grade design. The key reasons for selecting this model are as follows:
Excellent Outdoor Visibility
It features a high brightness design of 800 nits, ensuring clear and readable display content even under strong direct sunlight or high ambient lighting conditions, making it ideal for outdoor terminals and in-vehicle displays.
Long Product Lifecycle
The NL8060BC21-11C offers a long product lifecycle, ensuring stable supply over multiple years. This significantly reduces redesign and retesting costs for long-term maintenance projects.
Low Power Consumption
The display adopts an efficient LED backlight system and a standard 3.3V power supply, delivering high brightness while effectively controlling heat generation and power consumption.
Reliable Industrial Performance
It provides excellent resistance to vibration and electromagnetic interference, along with a wide operating temperature range, ensuring stable 24/7 operation in industrial environments.
Easy System Integration
The module uses a standard LVDS interface and a common industrial mounting design, enabling engineers to achieve fast hardware integration and significantly shorten product time-to-market.
Typical Applications of NEC NL8060BC21-11C
The NL8060BC21-11C 8.4-inch LCD is suitable for industrial systems that require defined display performance and operational stability. It can meet the demands of continuous operation and multi-environment adaptability in various industrial equipment and terminals.
1. Industrial Control and Automation Equipment
This model features wide operating temperature support, high brightness, and stable display performance, making it suitable for PLC control panels, HMI interfaces, and industrial automation line monitoring systems. It can be used for real-time parameter visualization and equipment status monitoring, ensuring continuous production operations.
2. Outdoor Industrial Terminals and Information Display Systems
With 800 nits high brightness and low-reflection design, it is suitable for outdoor information terminals such as self-service kiosks, outdoor monitoring terminals, and traffic information display panels.
3. Transportation and In-Vehicle Systems
The NL8060BC21-11C can be applied in construction vehicles, logistics transport equipment, and rail transit control systems, including in-vehicle monitoring displays and dispatch system interfaces, supporting stable operation in vibration environments.
4. Smart Manufacturing and Embedded Systems
This LCD is suitable for industrial robot control terminals, intelligent device interfaces, and embedded industrial all-in-one systems, enabling intelligent interaction in industrial equipment.
5. Energy and Power System Monitoring
It can also be used in substation monitoring terminals, energy management systems, and energy storage HMI interfaces for real-time display of voltage, current, and operational status data.
NL8060BC21-11C Datasheet

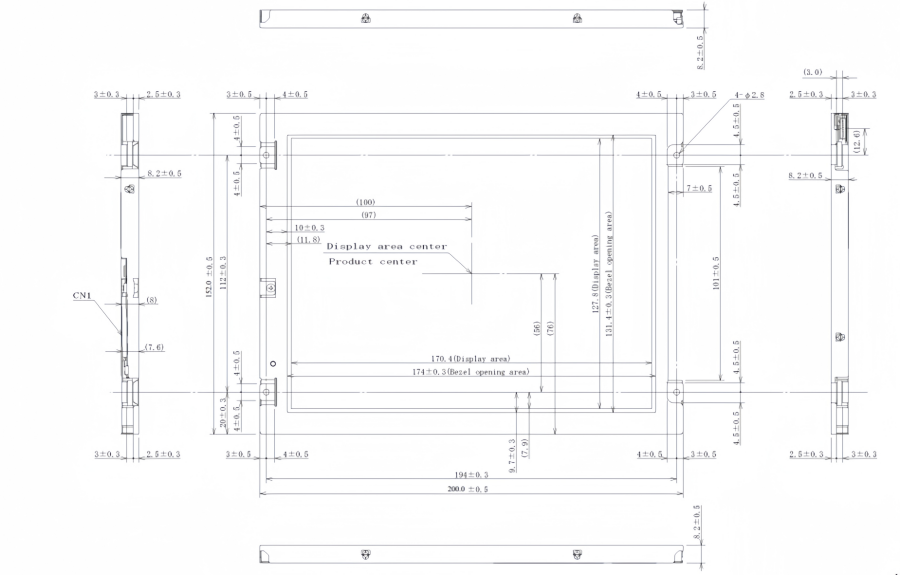

Outline Drawings
This section provides the outline drawing information of the NL8060BC21-11C display module, which serves as a reference for mechanical layout, interface positioning, and installation integration in engineering design.
Handling Precautions
1) Hold the LCD module by both ends and avoid touching the PCB to prevent damage or component misalignment.
2) When placing the module temporarily on a surface, keep the display facing downward.
3) Use proper electrostatic discharge (ESD) protection, such as wrist straps or ionizers, during handling.
4) Tighten mounting screws to no more than 0.294 N·m to avoid bezel deformation.
5) Install the module using the designated mounting holes only. Do not bend, twist, or apply excessive force to the bezel or display surface, as this may cause display mura.
6) Do not press, scratch, or rub the LCD surface. Clean only with a soft, dry cloth.
7) Avoid plugging or unplugging interface connectors when the module is operating.
8) Leave the original protective film on the polarizer during handling to prevent scratches. Avoid adhesive films that may affect the polarizer's appearance or performance.
9) If the LCD glass breaks and liquid crystal contacts your skin, wash the affected area thoroughly with soap and water.
