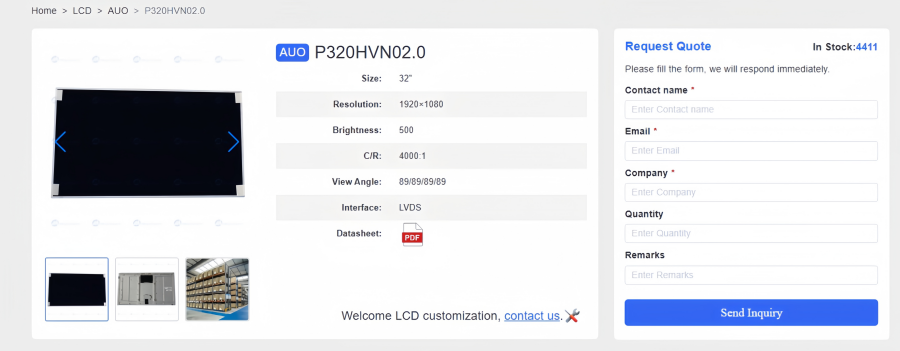

P320HVN02.0 Overview
The P320HVN02.0 is a 32.0’’ diagonal a-Si TFT-LCD display panel, featuring a 1920×1080 full HD resolution. Utilizing a TFT active matrix structure, each pixel is composed of red, green, and blue sub-pixels arranged in vertical stripes, with brightness controlled through an 8-bit grayscale signal per sub-pixel. This design ensures sharp image quality, accurate color reproduction, and smooth grayscale performance, making it suitable for applications that demand high-definition visual output.
The module is equipped with an 8-bit 2-channel LVDS interface, enabling efficient and reliable data transmission. Its high brightness and wide viewing angle make it ideal for professional displays, industrial panels, and other scenarios. The P320HVN02.0 offers a robust solution for both consumer and industrial display needs.
P320HVN02.0 Specifications
Below is a detailed reference table about the key technical specifications and parameters of the AUO P320HVN02.0 LCD panel.
TYPE | DESCRIPTION |
Brand | AUO |
Model | |
Size | |
Composition | a-Si TFT-LCD, LCM |
Resolution | 1920(RGB)×1080, FHD 69PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 703.4(W)×397.9(H) mm |
Bezel Opening | 703.4(W)×397.9(H) mm |
Outline Size | 719.2(W)×413.7(H) ×26.3(D) mm |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 4000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 |
Response Time | 35 (Typ.)(Tr+Td) |
Display Colors | 16.7M 99% sRGB |
Lamp Type | WLED , 50K hours , With LED Driver |
Frequency | 60Hz |
Voltage Supply | 12V (Typ.) |
Panel Weight | 950g (Max.) |
Signal Interface | · LVDS (2 ch, 8-bit) , 51 pins Connector |
Touchscreen | Without |
Max Ratings | Operating Temperature:0 ~ 50 °C ; Storage Temperature: -20 ~ 60°C |
Structure and Durability
In the system architecture of the P320HVN02.0, the module features a precisely engineered physical structure that tightly integrates the FHD (1920×1080) LCD panel with a high-performance backlight system. This AUO 32-inch LCD design not only helps reduce the overall size of the end device but also provides excellent physical protection for the internal core components.
In terms of durability, the P320HVN02.0 supports continuous 24/7 operation. Its backlight system is specially reinforced to maintain stable image output even in environments with high temperatures or frequent vibration. In addition, as a high-performance 32-inch industrial display, it has passed strict electromagnetic interference (EMI) and environmental reliability tests, enabling it to effectively resist electrical noise and environmental fluctuations in industrial settings. This makes it well suited for applications such as smart retail, transportation information displays, and industrial monitoring systems.
Core Advantages & Unique Features
To better understand the core advantages and benefits of the P320HVN02.0, the following section analyzes its key technical strengths:
1. High-Resolution Display
Featuring a 1920 × 1080 Full HD resolution, the panel delivers sharp images and clear text, making it ideal for high-definition visual content and information display applications.
2. High Brightness and Excellent Visibility
The efficient WLED backlight provides stable brightness output and supports an ultra-high static contrast ratio of 3000:1 to 4000:1, ensuring vivid and well-defined images.
3. Excellent Energy Efficiency
Equipped with an advanced WLED backlight system, the display meets the energy-saving requirements of modern industrial equipment.
4. Wide Viewing Angle Technology
Powered by AMVA3 technology, the panel offers a wide viewing angle of up to 178°/178°, ensuring clear visibility from multiple perspectives.
5. LVDS Interface
The module adopts a mature 2-port LVDS interface, supporting both VESA and JEIDA format switching, providing strong compatibility with various driver hardware standards.
P320HVN02.0 Interface Pin Assignment
The following is the technical pinout definition for the P320HVN02.0 industrial display with a LVDS (2 ch, 8-bit) interface. This model typically features a 51-pin connector (compatible with IS050-L51B-C23) to handle high-definition data transmission.
Pin Number | Symbol | Description |
1-3 | VCC | Power Supply Input (+12.0V) |
4-10 | GND / NC | Ground or No Connection |
11 | VDS | LVDS Data Format Selection (High: JEIDA / Low or NC: VESA) |
12 | NC | No Connection |
13-22 | RXE0-~RXE3+ | LVDS Even Pixel Data Signals |
23-24 | RXEC- / RXEC+ | Even Channel Differential Clock Signals |
25-27 | GND | Signal Ground |
28-37 | RXO0- ~ RXO3+ | LVDS Odd Pixel Data Signals |
38-39 | RXOC- / RXOC+ | Odd Channel Differential Clock Signals |
40-51 | GND / NC | Ground or Production Test Pins |
Design Notes
l Voltage Levels: The logic power supply (VCC) for this panel is typically 12V. Before connecting the controller board, ensure the jumper position is correctly set to prevent accidentally applying 5V, which could lead to circuit failure or burnout.
l Signal Matching: This model supports 8-bit color depth. If image abnormalities occur (such as graininess or color inversion), it is usually necessary to adjust the voltage level of Pin 11 (VDS/LVDS Option) to toggle between VESA and JEIDA formats.
l Backlight Power Supply: Please note that the aforementioned pins are strictly for the logic driver (T-CON) interface. The backlight unit (Inverter/LED Driver) typically requires a separate 12-pin or 14-pin high-current interface for power.
Typical Applications
With its excellent display performance and stable industrial-grade design, the P320HVN02.0 LCD panel can be widely used in various commercial and industrial display scenarios, such as information displays, control interfaces, and public display applications.
Commercial Digital Signage
The P320HVN02.0 32-inch Full HD display is suitable for information display terminals in shopping malls, brand stores, hotel lobbies, and airports. It can be used to present advertisements, product introductions, promotional activities, and real-time announcements.
Smart Retail and Self-Service Terminals
In devices such as self-ordering kiosks, retail information terminals, electronic product catalogs, and interactive in-store displays, the P320HVN02.0 panel provides sufficient screen space to present product information, user interfaces, and multimedia content.
Transportation and Public Information Display Systems
The P320HVN02.0 can be used in bus stop information displays, subway guidance screens, and airport flight information systems to show schedules, route information, public notices, and dynamic data updates.
Industrial Control and Monitoring Centers
In factory control rooms, energy management systems, or security monitoring centers, the AUO 32-inch display can present multiple monitoring windows or data interfaces simultaneously, allowing operators to perform centralized monitoring and data analysis more efficiently.
Business Meetings and Corporate Information Displays
This screen size is also suitable for corporate meeting room displays, training presentation equipment, and internal information boards, where it can be used to show presentations, data charts, and company announcements.
FAQs
What is the screen size and resolution?
The P320HVN02.0 is a 32’’ professional-grade LCD with a Full HD (1920x1080) resolution.
Is it suitable for outdoor use?
While it has high contrast, its standard brightness (approx. 350-400 nits) is best suited for indoor or semi-outdoor industrial environments. For direct sunlight, a high-brightness variant would be required.
What interface does it use?
It uses a 51-pin LVDS (2-channel, 8-bit) interface for data transmission.
Which model can replace the P320HVN02.0?
The P320HVN02.1 is the primary seamless replacement, sharing the same physical dimensions and electrical pinout.
