AT070TN92 Overview
Innolux AT070TN92 is a 7.0 inch diagonal a-Si TFT-LCD display panel product. It uses amorphous silicon TFT technology. The resolution is 800 × 480 pixels (WVGA). The brightness can reach 350 cd/m². It offers good contrast and wide viewing angles. It is suitable for many portable devices and industrial applications.
The AT070TN92 supports a 24-bit RGB interface. The refresh rate is up to 60 Hz. It has low power consumption, making it suitable for battery-powered devices and embedded systems. The panel has a compact thickness and can be used with a touch panel to add interactive functions.
In addition, this LCD module supports a wide operating temperature range and has good vibration resistance. It provides a high-performance and reliable display solution for system designers.
AT070TN92 Specifications
Below is a table of common specifications for the AT070TN92 LCD screen, for reference.
TYPE | DESCRIPTION |
Brand | |
Model | |
Size | |
Composition | a-Si TFT-LCD, LCM |
Resolution | 800(RGB)×480, WVGA 134PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 154.08(W)×85.92(H) mm |
Bezel Opening | 156.7(W)×89.1(H) mm |
Outline Size | 164.9(W)×100(H) ×6(D) mm |
Brightness | 250 cd/m² (Typ.) |
Contrast Ratio | 800:1 (Typ.) (TM) |
Viewing Angle | 70/70/50/70 (Typ.)(CR≥10) |
Response Time | 10/15 (Typ.)(Tr/Td) |
Display Colors | 262K/16.7M 50% NTSC |
Lamp Type | 3S9P WLED , 20K hours , Without Driver |
Frequency | 60Hz |
Voltage Supply | 3.3/10.4/16.0/-7.0V (Typ.)(DVDD/AVDD/VGH/VGL) |
Panel Weight | 150g (Typ.) |
Signal Interface | Parallel RGB (1 ch, 6/8-bit) , 50 pins FPC |
Touchscreen | Without |
Max Ratings | Operating Temperature:-20 ~ 70 °C ; Storage Temperature: -30 ~ 80°C |
AT070TN92 Display Advantages
The AT070TN92 display achieves a good balance between clarity, brightness, and power consumption. It meets everyday display needs and is also suitable for industrial and embedded devices. This section will introduce the main display advantages of the AT070TN92 from several aspects.
l Efficient transmissive drive structure: Uses a TN (Twisted Nematic) drive mode, which is a typical transmissive LCD panel design.
l Accurate signal synchronization: Supports both DE (Data Enable) mode and Sync mode for signal triggering.
l Low-power LED backlight system: Uses an efficient white LED array with stable brightness and long service life.
l Wide temperature tolerance: Supports an operating temperature range of -20 to 70 °C and a storage temperature range of -30 to 80 °C, suitable for industrial and semi-outdoor environments.
l Multi-direction display support: Supports U/D and L/R image reverse, making it easy to use in different mounting orientations.
l 6/8-bit color depth support: Provides a good balance between display quality and interface bandwidth, meeting common industrial display needs.
l Matte surface treatment: Effectively reduces glare and improves readability in bright environments.
l Practical FPC length (80.15 mm): Offers greater flexibility for mechanical layout and mainboard connection, simplifying system integration.

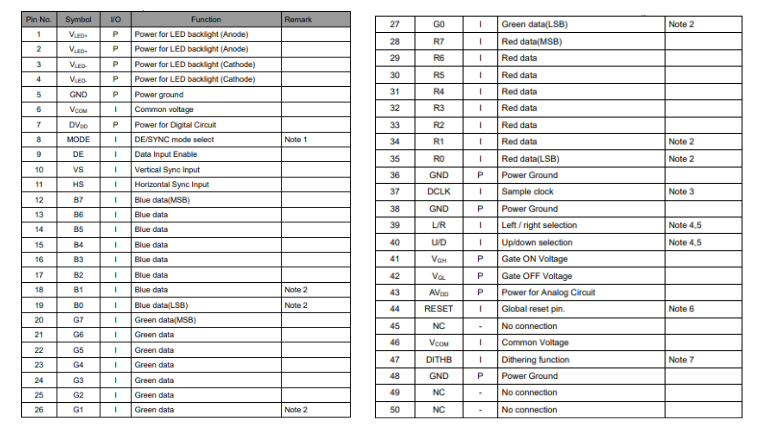

AT070TN92 Pin Information
The AT070TN92 uses a standard RGB parallel interface. Its pins are mainly grouped into power, backlight, voltage control, and data signals. The panel has separate LED backlight power pins (LED+ / LED−) for the anode and cathode. It also includes digital power (DVDD), analog power (AVDD), and several GND pins. In addition, pins such as VCOM, VGH, and VGL provide the key voltages needed for LCD driving.
For signal control, the AT070TN92 supports 24-bit RGB data, with 8 bits each for Red, Green, and Blue. Some bits can also work in 6-bit mode. It supports HS, VS, and DE sync signals, and works with both DE mode and Sync mode. The panel also provides U/D and L/R pins for up/down and left/right display direction control, making installation more flexible. DCLK is used as the sampling clock, RESET is for global reset, and the DITHB pin supports dithering to improve image quality at lower color depth. The pin layout is clear and easy to connect to the main control board.
Where to Use AT070TN92 Display?
The AT070TN92 display offers stable visual performance, a moderate size, and strong environmental adaptability, making it widely used across various devices and systems. In this section, we will explore the role this display plays in our work and daily life.
Industrial and Embedded Systems
The AT070TN92 display also performs exceptionally well in industrial and embedded systems, commonly used in industrial control panels, instrumentation, and POS terminals. These applications require the display to be durable and environmentally adaptable, providing stable support for industrial operations and information processing.
Consumer Electronics
The AT070TN92 display is widely used in consumer electronics, making it ideal for digital photo frames, portable DVD players, handheld gaming devices, and portable multimedia players. These devices typically demand accurate color reproduction and moderate brightness to deliver a satisfying viewing experience.
Communication and Security Devices
In the field of communication and security, the AT070TN92 display is commonly found in video door phones, VOIP phones, and smart home security control terminals. It maintains clear visuals under various conditions and supports rapid information display, ensuring reliable communication and security functions.
Automotive and Navigation Devices
The AT070TN92 display is also suitable for automotive entertainment systems, GPS navigators, and dashcams. It provides clear navigation information and multimedia display, enhancing driving safety and comfort.
Medical and Health Monitoring Devices
In medical and health monitoring applications, this display is used in portable medical instruments, health monitoring terminals, and medical imaging equipment. It delivers high contrast and stable images, supporting medical professionals in making accurate assessments and monitoring.
General Precautions
Safety
Liquid crystal is poisonous. Do not put it in your mouth. If liquid crystal touches your skin or clothes, wash it off immediately by using soap and water.
Handling
1. The LCD panel is plate glass. Do not subject the panel to mechanical shock or to excessive force on its surface.
2. The polarizer attached to the display is easily damaged. Please handle it carefully to avoid scratch or other damages.
3. To avoid contamination on the display surface, do not touch the module surface with bare hands.
4. Keep a space so that the LCD panels do not touch other components.
5. Put cover board such as acrylic board on the surface of LCD panel to protect panel from damages.
6. Transparent electrodes may be disconnected if you use the LCD panel under environmental conditions where the condensation of dew occurs.
7. Do not leave module in direct sunlight to avoid malfunction of the ICs.
Static Electricity
1. Be sure to ground module before turning on power or operating module.
2. Do not apply voltage which exceeds the absolute maximum rating value.
Storage
1. Store the module in a dark room where must keep at 25±10℃ and 65% RH or less.
2. Do not store the module in surroundings containing organic solvent or corrosive gas.
3. Store the module in an anti-electrostatic container or bag.
Cleaning
1. Do not wipe the polarizer with dry cloth. It might cause scratch.
2. Only use a soft sloth with IPA to wipe the polarizer, other chemicals might
permanent damage to the polarizer.
FAQs
What type of display is the AT070TN92?
The AT070TN92 is a 7-inch a-Si TFT-LCD display panel from Innolux with a diagonal size of 7.0 inches. It features a high-quality active matrix LCD structure, providing stable image performance and good environmental adaptability.
What is the typical interface of the AT070TN92?
The AT070TN92 generally supports standard RGB interface protocols, making it compatible with a wide range of driver boards and embedded systems.
How should the AT070TN92 be handled and maintained?
Avoid scratching the front polarizer.
Turn off the power before connecting or disconnecting the display.
Wipe off any water droplets immediately to prevent discoloration.
Clean the screen with soft, absorbent cloth if needed.
