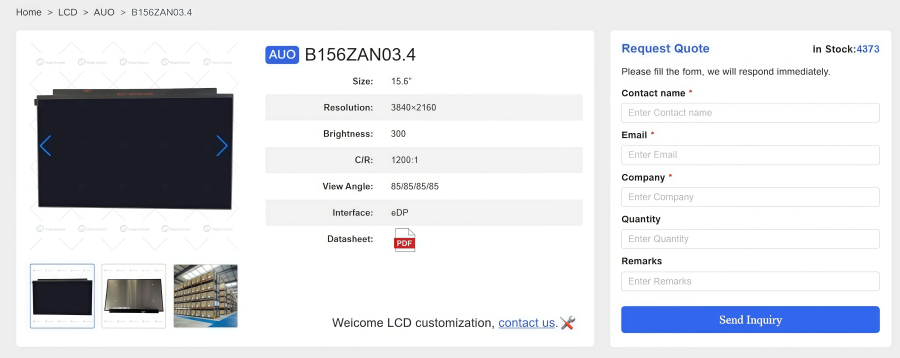

B156ZAN03.4 Overview
The B156ZAN03.4 is a 15.6-inch LTPS TFT-LCD display panel from AUO. It utilizes color active-matrix display technology and consists of a TFT LCD panel, driver circuitry, and an LED backlight system. The panel features a 3840 × 2160 UHD (4K) resolution, a 16:9 aspect ratio, and supports 16.7 million colors (RGB 8-bit), delivering sharp image quality and accurate color reproduction for high-resolution display applications.
The B156ZAN03.4 uses an eDP (Embedded DisplayPort) interface for signal transmission, providing high-speed data communication and broad system compatibility. It is widely used in notebook computers, mobile workstations, and industrial display terminals that require detailed visuals and reliable display performance.
B156ZAN03.4 Structure and Principle
The B156ZAN03.4 TFT-LCD module integrates a 40-pin eDP (Embedded DisplayPort) high-speed signal interface, driver circuitry, and a WLED backlight unit.
In terms of display principle, it adopts the advanced AHVA (Advanced Hyper-Viewing Angle, an IPS-type wide viewing technology) mode. Digital signals from the main controller precisely regulate the electric field applied to the TFT electrodes, thereby controlling the deflection angle of liquid crystal molecules through birefringence modulation.
Combined with a high color-gamut WLED backlight and polarizer system, the module achieves sub-pixel-level and microsecond-scale control of light transmittance. As a result, it delivers image output with up to 100% Adobe RGB color coverage.
B156ZAN03.4 Technical Specs
The following items are a summary of B156ZAN03.4 key specifications and performance in the table.
TYPE | DESCRIPTION |
Brand | |
Model | B156ZAN03.4 |
Size | |
Composition | LCM |
Resolution | 3840(RGB)×2160, UHD 283PPI |
Luminance | 300 cd/m² (Typ.) |
Contrast Ratio | 1200 : 1 (Typ.) (TM) |
Viewangle | 85/85/85/85 |
Color Depth | 16.7M 100% Adobe RGB |
Light Source | WLED , 15K hours , With LED Driver |
Interface Type | eDP (4 Lanes) , eDP1.4 , HBR2 (5.4G/lane) , 40 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 344.218(H)×193.622(V) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Outline Size | 350.66(W)×216.45(H) ×3.2(D) mm |
Shape Style | Slim (PCBA Flat, T≤3.2mm) |
Max Ratings | Operating Temperature:0 ~ 50 °C ; Storage Temperature: -20 ~ 60°C |
B156ZAN03.4 Optical Characteristics

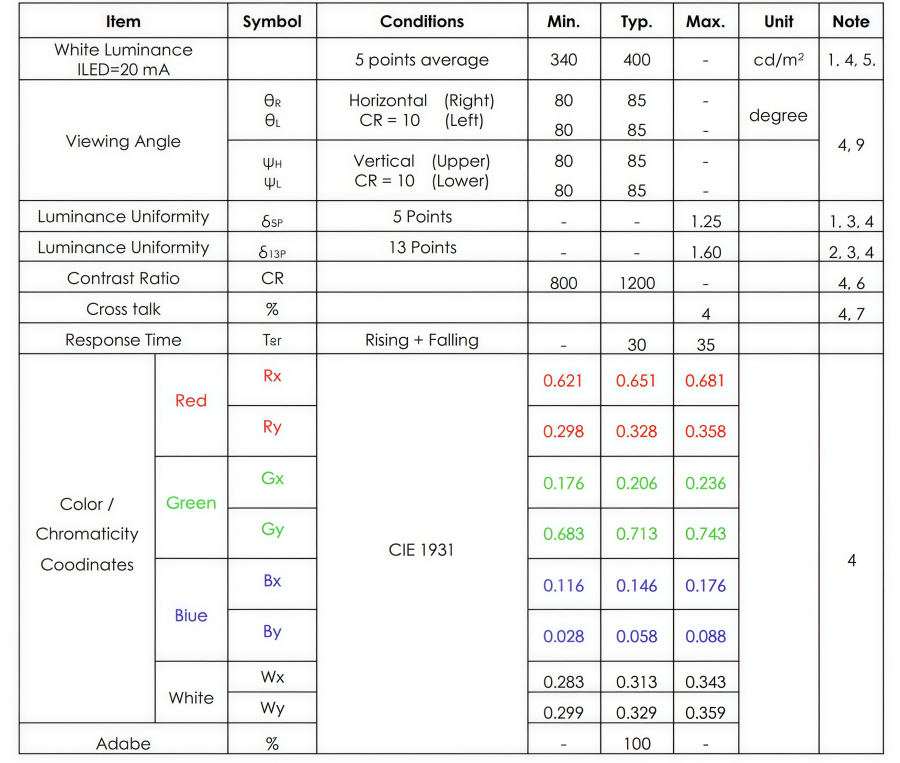

At a standard room temperature of 25℃, the B156ZAN03.4 display module achieves a typical white luminance of 400 cd/m² (measured at ILED = 20 mA). Combined with a typical 1200:1 contrast ratio, it ensures strong readability and clear image layering even in high ambient light environments.
In viewing performance, the horizontal and vertical viewing angles reach 85°/85°/85°/85° under a contrast ratio (CR) of 10, delivering full wide-angle visibility. More importantly, based on the CIE 1931 chromaticity standard, the module achieves up to 100% Adobe RGB color gamut coverage. The response time (rise + fall) is typically 30 ms, enabling smooth and stable image rendering performance.
B156ZAN03.4 Features and Benefits
The B156ZAN03.4 LCD offers advantages in performance and system compatibility, providing a stable and reliable visual solution for applications across different fields.
l The 15.6" 4K UHD resolution (3840×2160) delivers extremely sharp and detailed image quality for professional applications.
l AHVA (IPS-type) wide viewing angle technology ensures consistent color and brightness from all directions.
l 100% Adobe RGB color gamut provides excellent color accuracy for design and imaging tasks.
l eDP 1.4 interface supports high-speed data transmission with strong system compatibility.
l Integrated WLED backlight with LED driver simplifies system design and improves power efficiency.
l 400 cd/m² typical brightness ensures good readability in indoor and moderately bright environments.
l 1200:1 contrast ratio enhances image depth and visual clarity.
l Matte surface treatment reduces glare and improves usability under ambient lighting.
l Proven mechanical reliability with 1.5G vibration tolerance enables stable operation in mobile systems.
B156ZAN03.4 Limitations
Although the B156ZAN03.4 offers strong advantages in various aspects of display performance, it still has certain limitations in areas such as refresh rate and power consumption.
l 60Hz refresh rate limits ultra-smooth performance in high-end gaming applications.
l No touch functionality, requiring external touch solutions for interactive systems.
l 4K resolution increases GPU and system processing load compared to FHD panels.
B156ZAN03.4 LCD for Industrial Applications
The B156ZAN03.4 LCD can meet the image display requirements of various industrial equipment. Its advantages become particularly evident in industrial environments where large amounts of data, detailed graphics, and high-resolution images need to be displayed simultaneously.
1. Industrial Control and Monitoring Centers
In modern smart factories, operators often need to monitor equipment status, production parameters, alarm notifications, and process flow diagrams on a single display.
SCADA monitoring systems
l Industrial HMI terminals
l MES production management platforms
l Energy management monitoring systems
2. AOI (Automated Optical Inspection) Equipment
AOI systems require high-precision inspection of PCB solder joints, semiconductor packages, and electronic components, placing high demands on image detail and display accuracy.
l Soldering defect inspection
l PCB trace and circuit anomaly detection
3. Industrial Machine Vision Systems
Machine vision applications require display terminals capable of presenting high-resolution images, inspection results, and analytical data in real time.
l Defect detection
l Robot vision guidance
l Intelligent sorting systems
4. Edge Computing and Industrial PC Platforms
With the advancement of Industry 4.0, more industrial systems are integrating edge computing capabilities to perform local data processing, analysis, and visualization.
l Industrial PC display terminals
l AI edge computing workstations
l Data analytics platforms
l Smart manufacturing control terminals
B156ZAN03.4 LCD for Laptop Screen
The B156ZAN03.4 delivers sharp image quality and accurate color reproduction, making it well suited for notebook display applications that require high-resolution visuals and enhanced viewing experiences.
1. High-End Business Laptops
For professionals who frequently work with documents, spreadsheets, and multiple windows, the 4K resolution provides more screen space and improves productivity.
l Enterprise business laptops
l Premium ultrabooks
l Mobile office terminals
2. Mobile Workstations
Industries such as engineering, architecture, and product development often rely on professional software that demands high display accuracy and detailed visual output.
l CAD mechanical design
l 3D modeling software
l PCB design platforms
3. Multimedia and Entertainment Laptops
In addition to professional use, the 4K display capability of the B156ZAN03.4 significantly enhances everyday entertainment experiences.
l 4K video playback
l HDR content viewing
l Digital media consumption
Handling Precautions
1) Avoid scratching the front polarizer, as it is easily damaged.
2) Turn off the power before connecting or disconnecting interface cables.
3) Remove water droplets immediately to prevent discoloration or staining.
4) Clean the panel only with soft, lint-free cloth or absorbent cotton.
5) Handle carefully, as the glass panel may crack if dropped or subjected to impact.
6) Use proper ESD protection and grounding when handling the module.
7) Do not disassemble or modify the LCD module.
8) Avoid pressing the rear reflector sheet, which may affect display performance.
9) Insert and remove signal connectors carefully without twisting or tilting.
10) Do not bend, twist, or apply mechanical stress to the panel after installation.
11) Use a compliant limited power source and follow electrical safety requirements.
12) Disconnect power before maintenance and avoid touching electrodes, connectors, cables, or LED backlight circuits.
