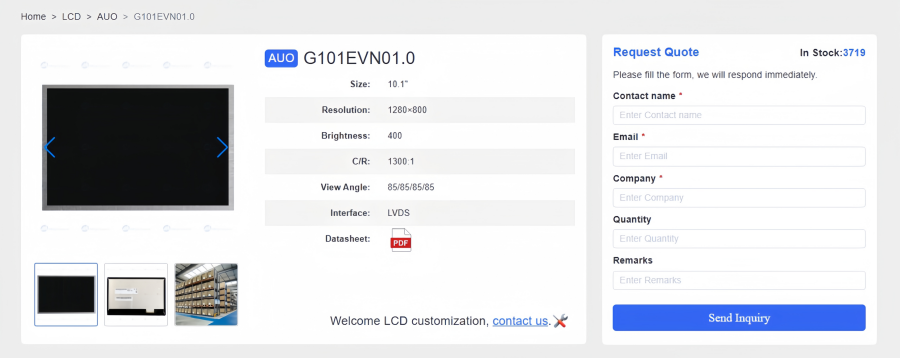

G101EVN01.0 Overview
The G101EVN01.0 is a color Active Matrix Liquid Crystal Display (TFT-LCD) module. It supports a 16:10 WXGA resolution with a display area of 1280×800 pixels and can render 262k colors (RGB 6-bit data driver). Equipped with an LED backlight driving circuit, it ensures uniform brightness and vivid color reproduction. All input signals are LVDS-compatible, allowing for easy and fast integration with various industrial control systems and computing devices.
In terms of display performance, the G101EVN01.0 uses TFT active matrix technology to achieve high response speed and excellent color fidelity, delivering sharp and detailed images and text. The LED backlight system not only enhances brightness but also reduces power consumption, providing reliable performance for extended operation.
G101EVN01.0 Core Systems
The core system of the G101EVN01.0 display module can be divided into the following components:
TFT-LCD Panel
l The main display unit of the module, using active matrix thin-film transistor (TFT) technology, where each pixel independently controls the alignment of liquid crystal molecules.
l Supports a WXGA resolution of 1280×800 and can display 262k colors.
l High response speed and clear image quality ensure stable performance for both dynamic images and static content.
Driver Circuit
l The module adopts a single-channel 1-port LVDS (8-bit data bus), enabling precise control of up to 16.7 million colors (6-bit + Hi-FRC).
l The integrated T-CON chip is responsible for accurate timing distribution, allocating synchronization signals to both row and column driver ICs.
l The driver circuit is compactly arranged on the flexible printed circuit (FPC) at the back of the module. Through COG (Chip-on-Glass) technology, the number of external components is significantly reduced.
LED Backlight System
l Uses an edge-light LED design, providing brightness of up to 400 cd/m².
l Unlike typical consumer-grade displays, the G101EVN01.0 integrates an internal LED driver, simplifying system design and improving reliability.
G101EVN01.0 Electrical Specifications
Below is a detailed reference table about the key technical specifications and parameters of the AUO G101EVN01.0 LCD panel.
TYPE | DESCRIPTION |
Brand | AUO |
Model | G101EVN01.0 |
Size | |
Composition | LCM |
Resolution | 1920(RGB)×1080, FHD 69PPI |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 1300 : 1 (Typ.) (TM) |
Viewangle | 85/85/85/85 |
Color Depth | 262K 45% NTSC |
Light Source | WLED , 15K hours , With LED Driver |
Interface Type | LVDS (1 ch, 6-bit) , 40 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 220.36(W)×139.1(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 187g (Max.) |
Outline Size | 229.46 × 149.2 × 4.96 (H×V×D) |
Max Ratings | Operating Temperature:-20 ~ 60 °C ; Storage Temperature: -30 ~ 70°C |
G101EVN01.0 Optical Performance
The display performance of the G101EVN01.0 LCD largely benefits from its MVA (Multi-domain Vertical Alignment) technology. Compared with traditional TN panels, MVA optimizes the alignment structure of liquid crystal molecules, significantly improving viewing angle stability and contrast performance.
1. Wide Viewing Angles
MVA technology creates multiple tilt directions for liquid crystal molecules within a single pixel. This design balances the light transmission from different viewing positions, enabling wide viewing angles of approximately 85°/85°/85°/85° (left/right/up/down). As a result, the display remains stable even when viewed from the side or from above, without noticeable grayscale inversion or color distortion.
2. High Contrast Ratio
The module offers a static contrast ratio of around 1300:1. When displaying black, the vertically aligned liquid crystal molecules effectively block backlight leakage, producing deeper blacks and clearer image contrast.
3. Smooth Color Performance
Although designed primarily for industrial applications, the G101EVN01.0 still delivers reliable color performance. With 6-bit + Hi-FRC technology, the panel can simulate approximately 16.7 million colors, ensuring smoother color transitions in images and graphics. In addition, the display covers about 50% of the NTSC color gamut, which is sufficient for accurate color representation in industrial HMI interfaces.
G101EVN01.0 Signal Description
The module uses a LVDS receiver embedded in AUO’s ASIC. LVDS is a differential signal technology for LCD interface and a high-speed data transfer device.
LVDS Connector Description
Physical interface is described as for the connector on module.
These connectors are capable of accommodating the following signals and will be following components.
Connector Name / Designation | For Signal Connector |
Manufacturer | JAE or Compatible |
Type / Part Number | JAE HD1S040HA1 or Compatible |
Mating Housing/Part Number | IPEX 20453-040T-11or Compatible |
G101EVN01.0 Key Application Scenarios
The G101EVN01.0 display module is widely used in various professional equipment and industrial scenarios thanks to its stable display performance, industrial-grade reliability, and strong environmental adaptability.
1. Industrial Automation Control Systems
The G101EVN01.0 is commonly used in human-machine interfaces (HMI) or control terminals for industrial automation equipment. It displays equipment operating status, process parameters, and alarm information, helping operators monitor and manage production processes efficiently.
2. Medical Equipment Display Terminals
In medical devices, display modules must provide clear image quality and stable operation. The G101EVN01.0 can be used as an interface or information display terminal for various medical instruments, presenting monitoring data, device status, and operational menus.
3. Test and Measurement Instruments
In electronic testing and measurement equipment, displays must accurately present test data, waveform information, and system status. With good resolution and stable image performance, the G101EVN01.0 is suitable for the display interfaces of various professional testing instruments.
4. Transportation and Vehicle Systems
In traffic control equipment and in-vehicle information systems, display modules are required to operate reliably in complex environments. The G101EVN01.0 can function as an information display terminal to present system status, operational data, or user interface information.
5. Embedded Devices and Smart Terminals
With the rapid growth of embedded systems and smart devices, more equipment requires intuitive graphical interfaces. The G101EVN01.0 can serve as a display terminal for embedded systems, presenting device information, user interfaces, and data monitoring content.
FAQs
What is the G101EVN01.0 display module?
The G101EVN01.0 is a 10.1-inch industrial TFT-LCD display module designed for professional equipment and embedded systems, offering stable image quality and reliable long-term operation.
Is the G101EVN01.0 suitable for industrial environments?
Yes. It is designed for industrial applications, providing stable performance, durability, and the ability to operate reliably in demanding environments.
What are the advantages of the G101EVN01.0?
Key advantages include high resolution, stable display performance, industrial-grade reliability, and compatibility with various professional equipment and embedded applications.
