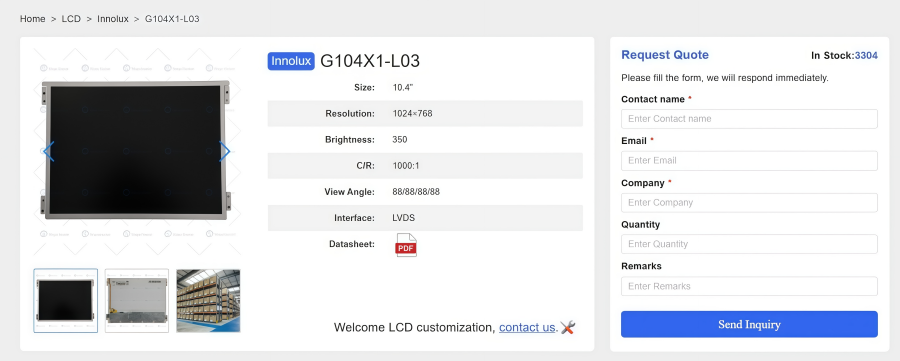

G104X1-L03 Basic Description
Innolux G104X1- L03 is a 10.4’’ IAV TFT Liquid Crystal Display module with LED backlight unit and 30-pin-and-1ch LVDS interface. This product supports 1024 x 768 XGA format and can display true 16.2M colors (6-bit colors with FRC). The converter module for LED backlight is built in.
It features an operating and storage temperature range of -20 ~ 70°C, and the maximal vibration level of 1.5G (14.7 m/s²). Its general features, as summarized by Mega Source, include WLED backlight, integrated LED driver, 180°reverse mounting, 6/8-bit color depth support, matte surface, and digitizer compatibility.
G104X1-L03 Specifications
This section will introduce the key technical specifications of G104X1-L03, including its resolution, mechanical dimensions, and display characteristics, providing a clearer reference for selection and application decisions.
TYPE | DESCRIPTION |
Brand | |
Model | G104X1-L03 |
Size | 10.4" |
Composition | LCM |
Resolution | 1024(RGB)×768, XGA 123PPI |
Luminance | 350 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewangle | 88/88/88/88 |
Color Depth | 262K/16.2M 53% NTSC |
Light Source | WLED , 30K hours , With LED Driver |
Interface Type | LVDS (1 ch, 6/8-bit) , 30 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 215.4(W)×161.8(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 3.3V (Typ.) |
Weight | 280g (Typ.) |
Outline Size | 238.6(W)×175.8(H)×7.97(D) mm |
Max Ratings | Operating Temperature:-20 ~ 70 °C ; Storage Temperature: -20 ~ 70°C |
G104X1-L03 Key Features
G104X1-L03 offers multiple core advantages in display performance and industrial adaptability, meeting the requirements of embedded and industrial control applications. Its key features are as follows:
l High brightness performance: Typical brightness of 350 nits, providing good visibility in indoor and medium-light environments.
l High contrast ratio: 1000:1 contrast enhances image depth and detail expression.
l Fast response time: Average response time of around 25ms (Ton+Toff), suitable for dynamic image display.
l XGA resolution: 1024×768 pixels, meeting clarity requirements for industrial control and information display.
l DE mode support: Supports Data Enable (DE only) mode, simplifying timing control design and improving compatibility.
l LVDS interface: Low Voltage Differential Signaling ensures high-speed, low-power, and strong anti-interference transmission.
l Ultra-wide viewing angle: 176° (H) / 176° (V) based on Super MVA technology, maintaining stable display from different angles.
l 180° rotation support: Flexible adaptation to different installation orientations and mechanical designs.
G104X1-L03 Application Fields
G104X1-L03 display is widely used in various industrial control applications with its stable display performance. This section will focus on its typical application areas within the industrial field.
1. Industrial HMI Human-Machine Interface Terminals
This display panel is widely used in PLC control panels, equipment operation interfaces, and industrial touch terminals to display real-time equipment status, parameter settings, and alarm information.
2. Industrial Automation and Production Line Control Systems
G104X1-L03 LCD is commonly used in automation production line control cabinets, central monitoring systems, and industrial controller interfaces to continuously display production data, process flows, and equipment operating status.
3. Testing and Measurement Instruments
G104X1-L03 is applied in oscilloscopes, test instruments, and quality inspection equipment to present waveform displays, test results, and data analysis interfaces.
4. Smart Manufacturing and CNC/Robotics Equipment
It can also be integrated into CNC machine tools, industrial robot control panels, and smart manufacturing systems to monitor operating paths, machining parameters, and system status in real time.
5. Energy Management and Power Monitoring Systems
G104X1-L03 is often used in power distribution cabinets, substation monitoring interfaces, and energy management systems to display voltage, current, power, and operating status information.
6. Embedded Industrial All-in-One and Dedicated Equipment
This display panel is compatible with various embedded industrial motherboards and control platforms, serving as a core display unit to provide stable graphical output.
G104X1-L03 Interface Connection and Signal Processing
The G104X1-L03 display panel employs a standard LVDS high-speed transmission architecture and integrates flexible color mode switching and backlight PWM dimming mechanisms, enabling it to maintain stable display performance across diverse application environments.
1. LVDS Channel & Color Configuration
G104X1-L03 uses a standard LVDS interface, offering high-speed data transmission and low EMI interference, making it suitable for industrial display applications.
l Supports 6-bit (262K colors) and 8-bit (16.2M colors) display modes
l SEL68 level control for mode switching:
- Low (GND): 8-bit mode with smoother color transitions for high image quality applications
- High (VCC): 6-bit mode for lower power consumption and better compatibility
l Recommended differential impedance: 100Ω ±10% to ensure stable XGA signal transmission
2. Backlight Control & PWM Dimming
The panel integrates an LED driver, enabling flexible brightness adjustment via PWM signals to adapt to different lighting environments.
Supports 0%–100% PWM brightness control
l Recommended PWM frequency: 100Hz–20kHz to avoid flicker and improve visual comfort
l Duty cycle is linearly proportional to brightness; 100% brightness is recommended for outdoor use
l Built-in driver eliminates the need for an external inverter, simplifying system design and reducing power consumption
G104X1-L03 Datasheet
G104X1-L03 Installation Tips
When installing G104X1-L03, the first step is to properly reserve space based on its mechanical dimensions (243.0 × 184.0 × 7.0 mm). With a slim thickness of only 7mm, it is important to ensure that the enclosure cutout aligns precisely with the active display area (210.432 × 157.824 mm). At the same time, sufficient space should be reserved for interface connections and heat dissipation during internal structural design.
For mounting, it is recommended to use the side mounting holes with screw fixation as the preferred method, as this side-mounted structure provides better stability compared to adhesive mounting. During installation, a 0.5–1.0mm EVA or silicone buffer pad should be placed between the metal frame of the panel and the front housing to absorb vibration and mechanical shock. Additionally, ensure that all four mounting points are evenly stressed to avoid localized pressure, which could lead to panel deformation or uneven display (Mura effect).
Precautions
Assembly and Handling Precautions
(1) Avoid applying excessive force such as bending or twisting during assembly.
(2) Assemble in a clean environment to prevent dust and oil contamination of the LCD and polarizer.
(3) Do not apply pressure or impact to the LCD panel or backlight.
(4) Follow the correct power-on sequence to prevent CMOS damage or latch-up.
(5) Do not plug or unplug the interface connector while the module is operating.
(6) Do not disassemble the module.
(7) Use a soft, dry cloth for cleaning; avoid chemicals to prevent scratching the polarizer.
(8) Prevent moisture from entering the module to avoid malfunction.
(9) Store under specified temperature and humidity conditions to maintain performance.
(10) Below 10°C, response time may slow and backlight startup voltage may increase.
(11) Prolonged display of static images may cause image sticking.
Safety Precautions
(1) Backlight startup voltage is around 1000V; avoid electric shock and do not disassemble or insert objects into the backlight unit.
(2) If liquid crystal leaks, avoid contact with eyes or mouth; wash skin thoroughly with soap if contact occurs.
(3) After end-of-life, the module is not harmful under normal operation and storage conditions.
