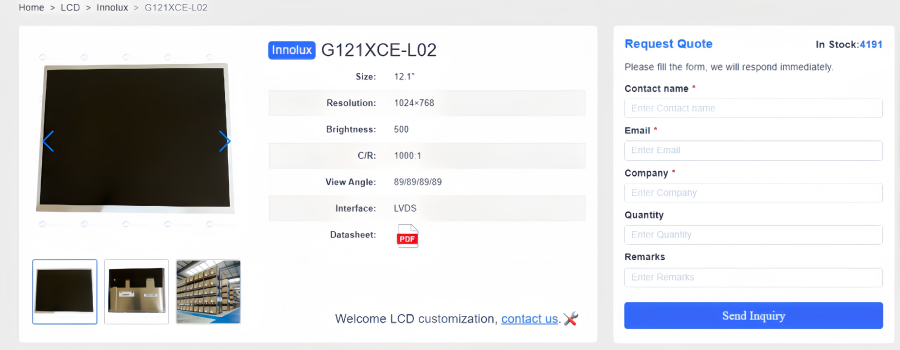

G121XCE-L02 Overview
The G121XCE-L02 is a 12.1-inch a-Si TFT-LCD display panel developed by Innolux Corporation. It features a 1024 × 768 XGA resolution and utilizes a 20-pin single-channel LVDS interface for reliable signal transmission. The module integrates a white LED Backlight Unit (BLU) with a built-in converter, enabling simplified system integration while maintaining stable brightness and efficient power consumption.
With support for 262K or 16.7 million colors, the panel delivers clear and vivid image reproduction suitable for professional display applications. It also supports DE (Data Enable) mode, reversible scan direction, and complies with RoHS environmental standards.
G121XCE-L02 Key Technical Specifications
To provide a clearer understanding of the core performance and technical features of the G121XCE-L02, the key specifications of this LCD module are summarized below. These parameters offer a comprehensive view of its resolution, interface type, display performance, and environmental adaptability.
TYPE | DESCRIPTION |
Brand | |
Model | |
Size | |
Composition | a-Si TFT-LCD, LCM |
Resolution | 1024(RGB)×768, XGA 105PPI |
Pixel Format | RGB Vertical Stripe |
Active Area | 245.76(W)×184.32(H) mm |
Bezel Opening | 249.0(W)×187.5(H) mm |
Outline Size | 260.5(W)×204(H) ×8.9(D) mm |
Surface | Antiglare, Hard coating (3H) |
Brightness | 500 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewing Angle | 89/89/89/89 (Typ.)(CR≥10) |
Response Time | 13/12 (Typ.)(Tr/Td) |
Display Colors | 262K/16.7M 72% NTSC |
Lamp Type | WLED , 30K hours , With LED Driver |
Frequency | 60Hz |
Voltage Supply | 3.3V (Typ.) |
Panel Weight | 490/510g (Typ./Max.) |
Signal Interface | · LVDS (1 ch, 6/8-bit) , 20 pins Connector |
Touchscreen | Without |
Max Ratings | Operating Temperature:-30 ~ 70 °C ; Storage Temperature: -40 ~ 80°C |
G121XCE-L02 Display Technology
To achieve stable and clear image performance, the G121XCE-L02 LCD adopts mature TFT-LCD display technology, combined with an efficient backlight system and a reliable signal transmission interface. Through the coordinated operation of an active matrix structure, WLED backlight, and an LVDS data interface, this display module is able to deliver stable and efficient visual performance.
1. TFT Active Matrix Structure
The G121XCE-L02 uses a TFT (Thin Film Transistor) active matrix structure. In this architecture, each pixel is controlled by an independent thin-film transistor, enabling precise regulation of the liquid crystal molecules and ensuring accurate image control.
Each pixel on the panel is composed of Red, Green, and Blue (RGB) sub-pixels, arranged in a vertical stripe pattern. By independently adjusting the brightness of each sub-pixel, the display can produce rich color levels and deliver high-quality image performance.
2. Backlight System
This module uses a WLED (White LED) backlight system as its light source, providing uniform and stable illumination for the LCD panel. Compared with traditional backlight solutions, WLED technology offers higher brightness efficiency and lower power consumption.
In addition, the LED backlight system provides excellent brightness stability and a long service life. It can maintain consistent display performance during long-term operation while helping reduce overall system power consumption, meeting the reliability and energy-efficiency requirements of industrial equipment.
3. Interface and Signal Transmission
The G121XCE-L02 adopts an LVDS (Low Voltage Differential Signaling) interface for data transmission. LVDS technology uses differential signaling to transmit data, which helps reduce electromagnetic interference while enabling high-speed and stable signal transmission with low power consumption.
Signal Interface of G121XCE-L02
The Innolux G121XCE-L02 features a standard LVDS (1 ch, 8-bit) signal interface, facilitating data exchange through a precision 20-pin connector. This single-channel 8-bit design not only provides a rich color depth of up to 16.7M colors for smooth gradients but also features exceptional resistance to electromagnetic interference (EMI).
For system integrators, the compact 20-pin configuration simplifies wiring complexity, allowing for seamless compatibility with a wide range of mainstream industrial controller boards.
G121XCE-L02 Pin Assignment
Pin No. | Symbol | Description |
1 | VCC | Logic Power Supply (+3.3V Typ.) |
2 | VCC | Logic Power Supply (+3.3V Typ.) |
3 | GND | Ground |
4 | GND | Ground |
5 | RX0- | LVDS Differential Data Channel 0 (-) |
6 | RX0+ | LVDS Differential Data Channel 0 (+) |
7 | GND | Ground |
8 | RX1- | LVDS Differential Data Channel 1 (-) |
9 | RX1+ | LVDS Differential Data Channel 1 (+) |
10 | GND | Ground |
11 | RX2- | LVDS Differential Data Channel 2 (-) |
12 | RX2+ | LVDS Differential Data Channel 2 (+) |
13 | GND | Ground |
14 | CLK- | LVDS Differential Clock Signal (-) |
15 | CLK+ | LVDS Differential Clock Signal (+) |
16 | GND | Ground |
17 | RX3- | LVDS Differential Data Channel 3 (-) |
18 | RX3+ | LVDS Differential Data Channel 3 (+) |
19 | GND | Ground |
20 | SEL68 | LVDS 6/8-bit Selection (High: 6-bit / Low or NC: 8-bit) |
Top Applications of G121XCE-L02
As a high-performance and highly reliable industrial-grade LCD module, the G121XCE-L02 is widely used across various scenarios. This display is particularly well suited for industrial control, human-machine interfaces (HMI), and professional equipment applications. Below, we highlight some of the typical industry applications of the G121XCE-L02.
1. TFT LCD Monitor (Desktop/Portable Display)
The G121XCE-L02 can be used as an industrial-grade TFT monitor, suitable for monitoring systems, control consoles, or portable terminals. Its wide viewing angle design allows multiple users to view the screen simultaneously, meeting professional display requirements.
2. Industrial Control Equipment
In automated production lines, robotic control consoles, or factory monitoring terminals, the G121XCE-L02 delivers stable and reliable display output. It features long continuous operation capability and wide temperature tolerance, supporting round-the-clock production management.
3. Human-Machine Interface (HMI)
Used as an HMI display in machinery, production control cabinets, and large instrument panels, the G121XCE-L02 can present operation interfaces, status monitoring, and real-time data.
4. Instrumentation Display
Suitable for various testing instruments, analytical devices, and measurement systems, the G121XCE-L02 can display charts, data, and alerts. Its high color accuracy and DE (Data Enable) mode support make instrument output more precise and intuitive.
5. Amusement
In gaming machines, simulators, self-service entertainment terminals, or theme park interactive devices, the G121XCE-L02 provides vivid visuals and smooth image performance, enhancing user experience and interactive enjoyment.
FAQs
What is the display size and resolution of G121XCE-L02?
The G121XCE-L02 features a 12.1’’ diagonal TFT-LCD panel with a 1024 × 768 (XGA) resolution, supporting 262K or 16.7M colors.
Which interface does G121XCE-L02 support?
The module supports a 20-pin single-channel LVDS interface, providing high-speed and low-interference signal transmission.
Does it comply with environmental standards?
Yes, G121XCE-L02 is RoHS compliant, ensuring it meets modern environmental and safety regulations.
What are the typical applications for this display?
It is commonly used in industrial control systems, HMI panels, instrumentation, desktop/portable monitors, and amusement or interactive devices.
