BOE HR215WU1-120 21.5'' LCD Screen for Desktop Monitors
The HR215WU1-120 is a 21.5'' industrial TFT-LCD panel from BOE. Featuring Full HD 1920×1080 resolution, it delivers clear and stable image display performance.
Equipped with an LVDS interface and a WLED backlight system, this module offers excellent industrial compatibility, making it widely used in various desktop monitor displays.
HR215WU1-120 Overview
HR215WU1-120 is a color active matrix TFT LCD module using amorphous silicon TFT's (Thin Film Transistors) as active switching devices. This module has a 21.5-inch diagonally measured active area with FHD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, and BLUE dots, which are arranged in a vertical stripe, and this module can display 16.7M colors. The TFT-LCD panel used for this module is adapted for low reflection and higher color type.
HR215WU1-120 Specifications
The HR215WU1-120 LCD screen offers a well-rounded industrial-grade display configuration, meeting the stable display requirements of industrial equipment and desktop monitor applications.
TYPE | DESCRIPTION |
Brand | |
Model | HR215WU1-120 |
Size | |
Composition | LCM |
Resolution | 1920(RGB)×1080, FHD 102PPI |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 1000 : 1 (Typ.) (TM) |
Viewangle | 89/89/89/89 |
Color Depth | 16.7M 72% NTSC |
Light Source | WLED [17S4P] , 30K hours , W/O Driver |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 479.8(W)×271.3(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 5.0V (Typ.) |
Weight | 1.79Kgs (Typ.) |
Outline Size | 495.6(H)×292.2(V) ×11.3(D) mm |
Max Ratings | Operating Temperature:0 ~ 50 °C ; Storage Temperature: -20 ~ 60°C |
HR215WU1-120 Key Features & Advantages
The HR215WU1-120 delivers an outstanding performance across display quality and industrial stability, making it capable of meeting the long-term operational requirements for desktop displays.
l 2 pixel/clock LVDS Interface: Features a high-speed LVDS interface with 2 pixel/clock data transmission support.
l High-speed Response: Provides fast response performance to effectively reduce motion blur and ghosting effects.
l 0.5t Glass Design: Utilizes a 0.5t ultra-thin glass structure for a slim and lightweight design.
l 16.7M Color Display: Supports 6-bit (Hi-FRC) color depth and can display up to 16.7M colors.
l Integrated WLED Backlight: Built-in edge-type WLED backlight to balance brightness, low power consumption, and long lifespan.
l High Brightness & Wide Viewing Angle: Features high brightness, high contrast, and low reflection for improved readability in industrial environments.
l DE Only Signal Mode: Supports DE (Data Enable) only mode, helping simplify timing control and system integration.
l RoHS & Halogen Free: Compliant with RoHS and Halogen Free environmental standards for modern eco-friendly electronic devices.
l ES 7.0 Compliant: Meets ES 7.0 specifications with strong industrial compatibility and stability.
l Gamma Correction Support: Supports Gamma Correction to optimize grayscale transition and overall display quality.
l Reverse Display Support: Supports Reverse type display mode for flexible installation and screen orientation adjustment in industrial equipment.
HR215WU1-120 Electrical Architecture
In hardware development and high-speed PCB layout design, maintaining the signal integrity of the HR215WU1-120 2-ch 8-bit LVDS interface requires following these key electrical guidelines:
1. Signal Architecture & Timing
l Dual-channel transmission: Odd channels (O-CLK, O-D0~D3) and even channels (E-CLK, E-D0~D3) transmit pixel data in parallel for odd/even columns.

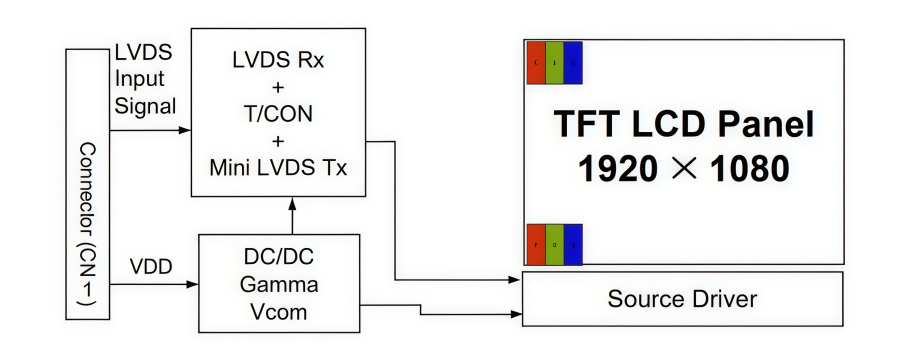

l Timing encoding: Using clock-based serialization, four differential pairs (D0~D3) transmit 28-bit data per cycle, including 24-bit RGB color data and DE/HSYNC/VSYNC control signals.
2. 100Ω Differential Impedance
l The LCD receiver integrates an internal 100Ω termination resistor.
l PCB differential traces must maintain 100Ω ±10% impedance to avoid signal reflection, overshoot, crosstalk, screen flicker, or data loss.
3. PCB Layout Guidelines
1) Consistent coupling: Differential pairs must keep constant trace width and spacing without branching.
2) Length matching:
l Pair skew ≤ 5mil
l Channel skew ≤ 50mil
3) Stable return path: Traces should route above a continuous GND plane; add GND vias near signal vias during layer transitions.
4) Noise isolation: Keep LVDS traces away from high-frequency switching signals such as DC-DC inductors and PWM lines, following the 3W spacing rule.
HR215WU1-120 Mechanical & Structural Integration
The HR215WU1-120 has an outline dimension of 495.6 mm × 292.2 mm, with an active area of 476.064 mm × 267.786 mm. The module features a compact structure with a slim thickness of 8.2 mm to 10.7 mm. It is suitable for metal enclosure installation or external PCAP touch integration.

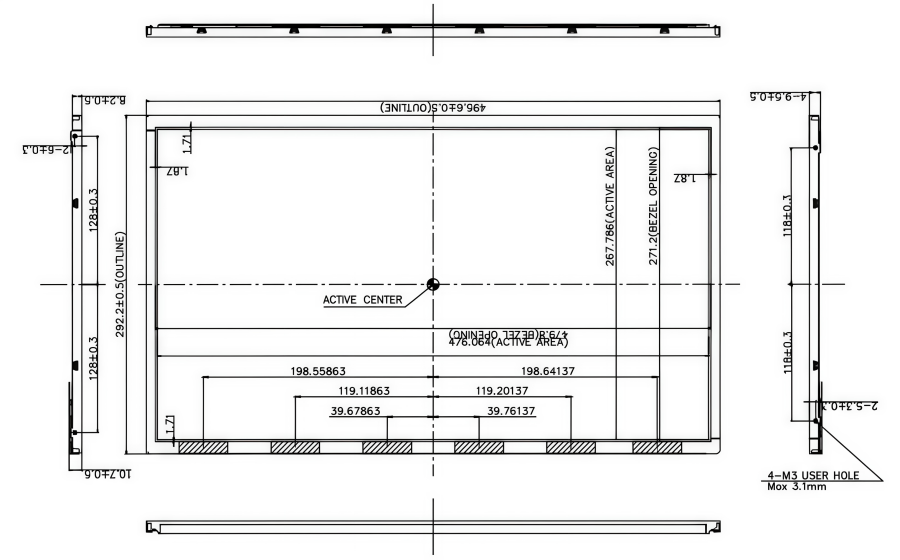

In addition, precision-aligned mounting holes are symmetrically arranged on the sides. The mechanical drawing specifies 4-M3 screw holes with a maximum thread depth of 3.1 mm and a vertical hole pitch of 118 mm. During mechanical design, the screw insertion depth must be strictly controlled within 3.1 mm to avoid damage or pressure on the internal LCD and backlight structure.
HR215WU1-120 Typical Application Fields
The BOE HR215WU1-120 LCD panel, with its stable display performance, Full HD resolution, and strong interface compatibility, is widely used in industrial control systems and desktop display applications.
1. Desktop Type of PC & Workstation Use
The HR215WU1-120 can be used as a high-resolution main display in desktop PCs and workstation environments. With its Full HD display capability and stable LVDS interface performance, it delivers clear and consistent image output. In multitasking office work, industrial design, and data analysis applications, this module effectively enhances visual performance and operational efficiency.
2. Slim-Size Display for Stand-alone Monitor
Thanks to its compact structure and relatively slim profile, this display is well-suited for ultra-thin standalone monitor designs. In commercial displays or industrial lightweight terminals, it maintains excellent display quality while enabling a thinner and more streamlined overall product design, meeting modern requirements for minimal and clean aesthetics.
3. Display Terminals for Control System
In industrial control systems, this module is commonly used in HMI interfaces or control terminal displays to present real-time operating status, process parameters, and alarm information. Its stable industrial-grade performance and strong environmental adaptability ensure reliable output in continuously operating factory automation environments.
4. Monitors for Process Controller
The HR215WU1-120 is also suitable for various process control monitoring applications, such as production line display screens and SCADA system terminals. Its high reliability and long-life backlight design provide clear and stable data visualization support for industrial production processes.
What to Consider When Operating?
1) Only handle the pouch when removing the module from the shipping package.
2) Use ESD-safe handling to avoid LCD damage; peel protective film slowly.
3) Avoid shock or pressure due to fragile glass structure.
4) Clean polarizer only with a soft dry cloth; no chemicals.
5) Do not connect/disconnect interface while powered.
6) Place the module display-side down on a flat surface.
7) Handle all connectors and cables gently.
8) Do not lose CLK or ENAB signals during operation to prevent panel damage.
9) Follow correct power sequence strictly to avoid malfunction.
10) Avoid condensation or dew conditions.
11) Do not store or operate in high temperature or high humidity; use anti-static packaging and cool environment.
12) Avoid displaying fixed patterns during aging tests.
13) Long-term static images may cause image sticking.
