M185XTN01.2 is an 18.5’’ TFT-LCD display panel based on TN technology, offering a strong cost-effectiveness and reliable performance. It provides good compatibility for system integration and can meet a wide range of application requirements.
This model is widely used in industrial control terminals and desktop display applications. This article will cover its specifications, features, interface, applications, and handling precautions to help you evaluate this display solution more efficiently.
M185XTN01.2 Overview
The M185XTN01.2 is an 18.5-inch a-Si TFT-LCD display panel from AU Optronics. It comes equipped with a built-in WLED backlight system to deliver steady and uniform lighting performance. This panel features a WXGA resolution of 1366 × 768 and supports 16.7 million display colors through 6-bit RGB combined with Hi-FRC technology, ensuring rich color reproduction and clear visual presentation.
Adopting a single-channel LVDS interface for signal input, the M185XTN01.2 realizes efficient and stable data transmission.
M185XTN01.2 Specifications
The following are the key specifications of the M185XTN01.2 display, covering core technical parameters and providing a comprehensive overview of its hardware configuration and performance standards.
TYPE | DESCRIPTION |
Brand | AUO |
Model | M185XTN01.2 |
Size | 18.5" |
Composition | LCM |
Resolution | 1366(RGB)×768, WXGA 84PPI |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewangle | 85/85/80/80 |
Color Depth | 16.7M 72% NTSC |
Light Source | 7S4P WLED , 30K hours , Without Driver |
Interface Type | LVDS (1 ch, 8-bit) , 30 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 413.4(W)×234.0(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 5.0V (Typ.) |
Weight | 1.29Kgs (Typ.) |
Outline Size | 430.4(W)×254.6(H) ×10.4(D) mm |
Max Ratings | Operating Temperature:0 ~ 50 °C ; Storage Temperature: -20 ~ 60°C |
M185XTN01.2 Mechanical Characteristics
Item | Unit | Min. |
Compression Endurance | [Kgf] | 2.5 |

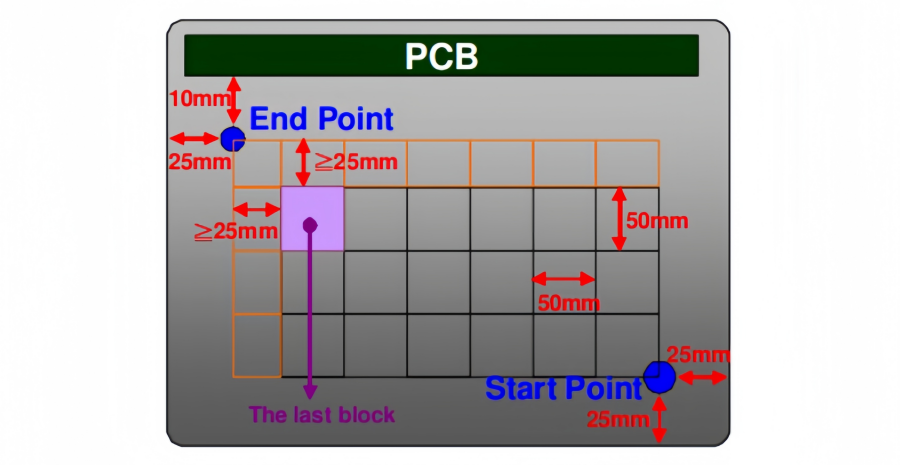

Test Method
1. The point is at a distance from right-downside 25mm x 25mm defined as the Start Point of Measure Points, and the point is at a distance 25mm from left-side & around 10mm from PCB defined as the End Point.
2. Align 50mm x 50mm block from Start Point on the Bezel Back, and the corners of each block are Measure Points.
3. If the distance from the last block to each side of the End Point ≥25mm, add other blocks to make sure that most area of Bezel Back can be measured.
M185XTN01.2 Advantages and Limitations
The M185XTN01.2 18.5’’ LCD panel offers a range of performance advantages, yet it also presents certain limitations. This section will analyze its core strengths and shortcomings for you.
Advantages
l Uses a-Si TFT-LCD technology, offering mature processing and high long-term stability.
l Integrated WLED backlight provides low power consumption and long lifespan, suitable for industrial equipment.
l Matte surface reduces glare and improves visibility.
l Flexible interface layout with Upside I/F design, making system integration easier.
l Operating temperature: 0–50°C; storage temperature: -20–60°C, meeting most application needs.
Limitations
l No built-in backlight driver; requires an external driver circuit.
l No touch function; an additional touch solution is needed.
M185XTN01.2 Interface & Connectivity
M185XTN01.2 adopts a standardized interface design, making it easy to integrate with various embedded systems and display control platforms.
Interface Design
This panel uses a 1-channel LVDS (Low Voltage Differential Signaling) interface, enabling high-speed, low-noise data transmission through differential signaling. It offers strong anti-interference capability and low power consumption, making it widely used in industrial and commercial display systems.
Pin Configuration
The LVDS interface typically includes basic pins such as power, ground, differential data channels, and clock signals. During design, connections must strictly follow the datasheet specifications to avoid display issues or signal distortion caused by incorrect wiring or impedance mismatch.
Compatibility
M185XTN01.2 is compatible with mainstream LCD controller boards, such as LVDS-based driver boards or embedded control platforms. In practical use, the controller output resolution (1366×768), signal format, and timing parameters must match the panel requirements.
System Integration
1) Since the panel does not include a backlight driver, an external LED driver is required.
2) Plan the interface position (Upside I/F) properly to fit mechanical layout.
3) Ensure proper signal routing and shielding to minimize electromagnetic interference.
4) Maintain stable power supply to prevent voltage fluctuations from affecting display performance.
M185XTN01.2 Applications
M185XTN01.2 delivers multiple advantages in structural stability, universal compatibility and long-term continuous operation, making it well-suited for industrial environments and desktop display terminals.
1. Industrial Control & HMI
The M185XTN01.2 is widely adopted in PLC control panels, human-machine interfaces and operation terminals for automated equipment, to display real-time operating status, parameter data and interactive control interfaces.
2. Industrial Monitoring & Data Visualization
This display panel fits production line monitoring systems, equipment operation platforms and security display terminals, meeting the demand for 7×24-hour stable operation in industrial scenarios.
3. Embedded Industrial Terminals
It can be integrated into industrial PCs, embedded hosts and custom control devices as a front-end display solution, ideal for space-limited installation environments.
4. Desktop Monitors
With a standard form factor and mature interface design, the panel features strong compatibility for office displays, commercial terminals and general information screens, perfectly matching daily office and lightweight application needs.
5. Self-service & Commercial Terminals
It is commonly equipped on information kiosks, ticket vending machines and retail terminals, delivering consistent and high-definition visual output for long-duration commercial use.
6. Light Industrial Supporting Equipment
The panel is also applicable to testing instruments, inspection devices and production auxiliary terminals, where reliable display performance and stable interface compatibility are essential.

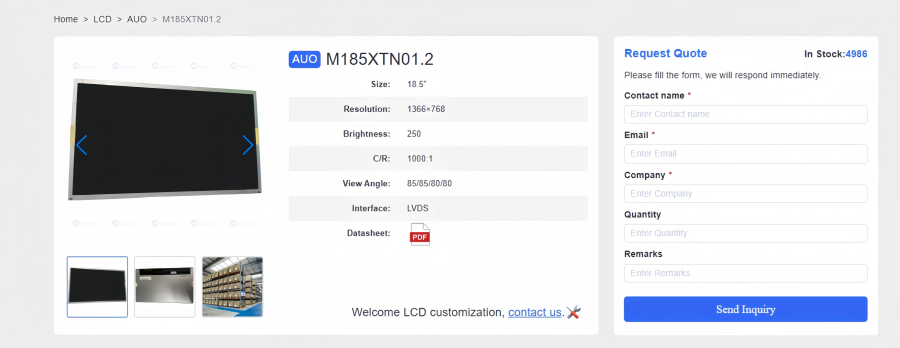

M185XTN01.2 Datasheet
What to Consider?
1) Handle the front polarizer carefully and avoid scratches or pressure damage.
2) Always turn off the power before connecting or disconnecting the module; wipe off any water immediately and clean the surface with a soft, lint-free cloth.
3) The panel is made of glass—avoid dropping, impact, or strong vibration.
4) Use proper ESD protection (grounding) when handling, as CMOS components are sensitive to static electricity.
5) Do not disassemble, modify, or apply force to the module, especially the back reflector or LED light bar center.
6) Insert and remove connectors carefully without tilting or rotating; ensure stable alignment.
7) After installation, avoid any bending or twisting stress; enclosure design should prevent mechanical strain.
8) Use a compliant power supply (LPS standard) to ensure safety.
9) Avoid touching sensitive areas such as COF contacts during handling.
10) For long-term storage, keep the module in a dark, dry environment at 5℃–35℃, away from direct light and high humidity.

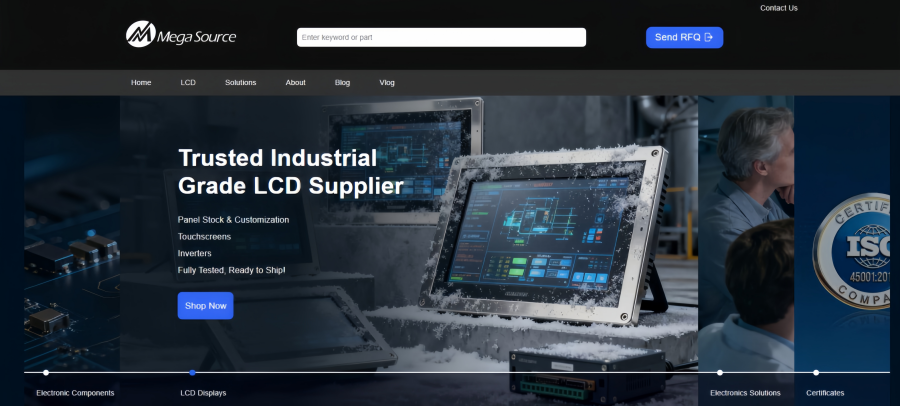

Mega Source: Explore Standard LCD Display Solutions
