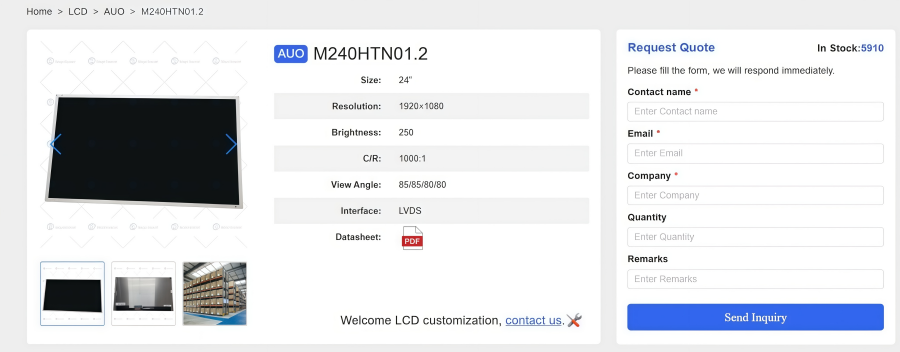

M240HTN01.2 Overview
The AUO M240HTN01.2 is a 24.0-inch a-Si TFT-LCD display panel module featuring a Full HD 1920×1080 resolution and 16.7M color depth (6-bit + Hi-FRC), designed as a standard solution for industrial and commercial display applications. It is equipped with a WLED backlight system (without an integrated backlight driver), uses a 2-channel LVDS interface, supports a matte surface finish, and complies with TCO 8.0 environmental standards.
This module is engineered for industrial-grade environments, offering a wide operating and storage temperature range as well as 1.5G vibration resistance. It is suitable for applications such as industrial control equipment, human-machine interfaces (HMI), and embedded display systems.
M240HTN01.2 Specifications
As a classic 24.0-inch TFT-LCD module, the M240HTN01.2 features high-definition resolution and a wide viewing angle, making it commonly used in industrial environments. The complete specifications for this product are listed below.
TYPE | DESCRIPTION |
Brand | |
Model | M240HTN01.2 |
Size | 24" |
Composition | LCM |
Resolution | 1920(RGB)×1080, FHD 91PPI |
Luminance | 250 cd/m² (Typ.) |
Contrast Ratio | 1000:1 (Typ.) (TM) |
Viewangle | 85/85/80/80 |
Color Depth | 16.7M 72% NTSC |
Light Source | 9S4P WLED , 30K hours , Without Driver |
Interface Type | LVDS (2 ch, 8-bit) , 30 pins Connector |
Pixel Format | RGB Vertical Stripe |
Active Area | 535.4(W)×303.0(H) mm |
Frame Rate | 60Hz |
Touchscreen | Without |
Voltage Supply | 5.0V (Typ.) |
Weight | 1.89±0.08Kgs |
Outline Size | 556(W)×323.2(H) ×12(D) mm |
Max Ratings | Operating Temperature:0 ~ 50 °C ; Storage Temperature: -20 ~ 60°C |
M240HTN01.2 Structure and Principle
The internal structure of the M240HTN01.2 display panel reflects the precision of TFT-LCD technology. The following explains its working principle from micro-level pixel control to macro-level signal transmission:
1. TFT-LCD Basic Principle
TFT-LCD (Thin-Film Transistor Liquid Crystal Display) is a non-emissive display technology that relies on the "ight valve effect" of liquid crystal molecules to control light transmission. The liquid crystal layer is sandwiched between two polarizers, and by applying voltage to change the molecular alignment, the light transmittance is adjusted, enabling grayscale display from black to white.
2. Pixel Driving Method
The M240HTN01.2 features a resolution of 1920×1080, where each pixel consists of RGB sub-pixels controlled by individual TFTs. During line scanning, the TFT is activated to charge the pixel capacitor, which then holds the charge until the next frame refresh. This active-matrix driving method ensures stable, flicker-free performance for large-format dynamic images.
3. Backlight System Structure
It adopts an edge-lit WLED backlight system composed of LED light sources, a light guide plate (LGP), and diffusion/brightness enhancement films. The LED point light is converted into a uniform surface light through optical structures, providing stable brightness while enabling a thin panel design.
4. Signal and Driving Process
External image data is input via a 2-channel LVDS interface and processed by the T-CON (timing controller). The T-CON converts signals into timing and pixel data for the gate and source drivers. The source driver then applies corresponding voltages to each pixel, controlling the liquid crystal orientation to render the final image.
M240HTN01.2 Optical Performance
M240HTN01.2 LCD features visual clarity and long-term operational stability. Its optical characteristics are optimized for demanding professional environments where accuracy and readability are critical.
l High Definition Accuracy: It features a 1920×1080 Full HD resolution on a 24-inch screen, delivering high pixel density and clear detail. This ensures sharp rendering of labels, grids, and markings in SCADA and CAD applications, reducing reading errors.
l Brightness and Contrast: With a typical brightness of 250 cd/m², it provides reliable visibility in indoor industrial lighting conditions. A 1000:1 contrast ratio enhances black-white separation, improving overall text clarity and readability.
l Response Time and Color Performance: The display offers a 5 ms response time, reducing motion blur in dynamic scenes such as monitoring systems. It supports 16.7M colors (8-bit or 6-bit + Hi-FRC) with ~72% NTSC gamut, ensuring smooth and accurate color reproduction.
M240HTN01.2 Mechanical & Electrical Details
and electrical compatibility, enabling easier system integration and faster development.
1. Mechanical Design
The module features a 16:9 widescreen aspect ratio, aligning with mainstream industrial display and HMI requirements while ensuring broad compatibility. Its compact and slim structure reduces overall system thickness and supports both VESA mounting and embedded panel installation, making it ideal for space-constrained industrial cabinets and kiosks.
2. Interface Solution
It utilizes a mature 2-channel LVDS interface, ensuring stable and low-noise transmission of 1080P signals even over longer cable distances. The 30-pin standard connector (1.0 mm pitch) integrates power, ground, and differential signal lines, offering high compatibility with industrial motherboards and embedded platforms.
3. Backlight Structure
The panel adopts an edge-lit WLED backlight system, where light is evenly distributed via a light guide plate, reducing panel thickness and improving thermal efficiency. It also supports PWM dimming control, simplifying external circuit design without requiring complex high-voltage backlight drivers.
4. Power and Thermal Design
With a typical power consumption of around 12–15W, the module is optimized for low-power industrial use. Heat is mainly dissipated through the metal frame, allowing for passive cooling. This supports fanless system design, enhancing overall reliability and extending MTBF (Mean Time Between Failures).
M240HTN01.2 Application Scenarios
In practical applications, the M240HTN01.2 display, with its stable performance and standardized design, can adapt to a wide range of typical scenarios, including industrial control, data monitoring, and desktop office use.
Industrial Automation & HMI
It is widely used in industrial automation terminals such as PLC control panels, production line interfaces, and equipment debugging stations. Its stable display performance supports reliable 24/7 continuous operation.
CNC Machines & Industrial Equipment
In CNC machines and machining centers, the M240HTN01.2 serves as a core display module for presenting tool paths, machining trajectories, operating parameters, and alarm information.
Industrial Monitoring & Data Visualization
The display is suitable for SCADA systems, control rooms, and energy management platforms. It supports multi-window split-screen display, enabling real-time monitoring and efficient data analysis.
Embedded Industrial Systems & Professional Terminals
The M240HTN01.2 LCD panel can be integrated into industrial controllers, test instruments, medical support devices, and embedded systems. Its standard LVDS interface and mature design simplify system integration.
Desktop Monitor
In office or light industrial environments, it can function as a desktop monitor for document processing, data analysis, and engineering design. The 24-inch FHD screen provides a comfortable balance between clarity and viewing area.
M240HTN01.2 Datasheet
Handling Precautions
1) Do not scratch the front polarizer.
2) Turn off power before connecting/disconnecting input.
3) Remove water immediately to avoid stains/discoloration.
4) Clean with soft cloth or absorbent cotton only.
5) Glass panel to avoid drops or strong impact.
6) Handle with ESD protection; ensure proper grounding (CMOS LSI).
7) Do not open or modify the module.
8) Do not press the reflector sheet on the back.
9) When repacking, avoid pressing LED bar center; press edges gently.
10) Do not twist or tilt signal interface connector during insertion/removal.
11) Avoid any bending/twisting after installation; design enclosure to prevent stress.
12) Use a Limited Power Source (IEC60950 / UL1950 compliant) power supply.
13) Avoid touching COF area during mechanical design.
14) Store in dark place, avoid sunlight/fluorescent light; keep 5°C–35°C, normal humidity.
